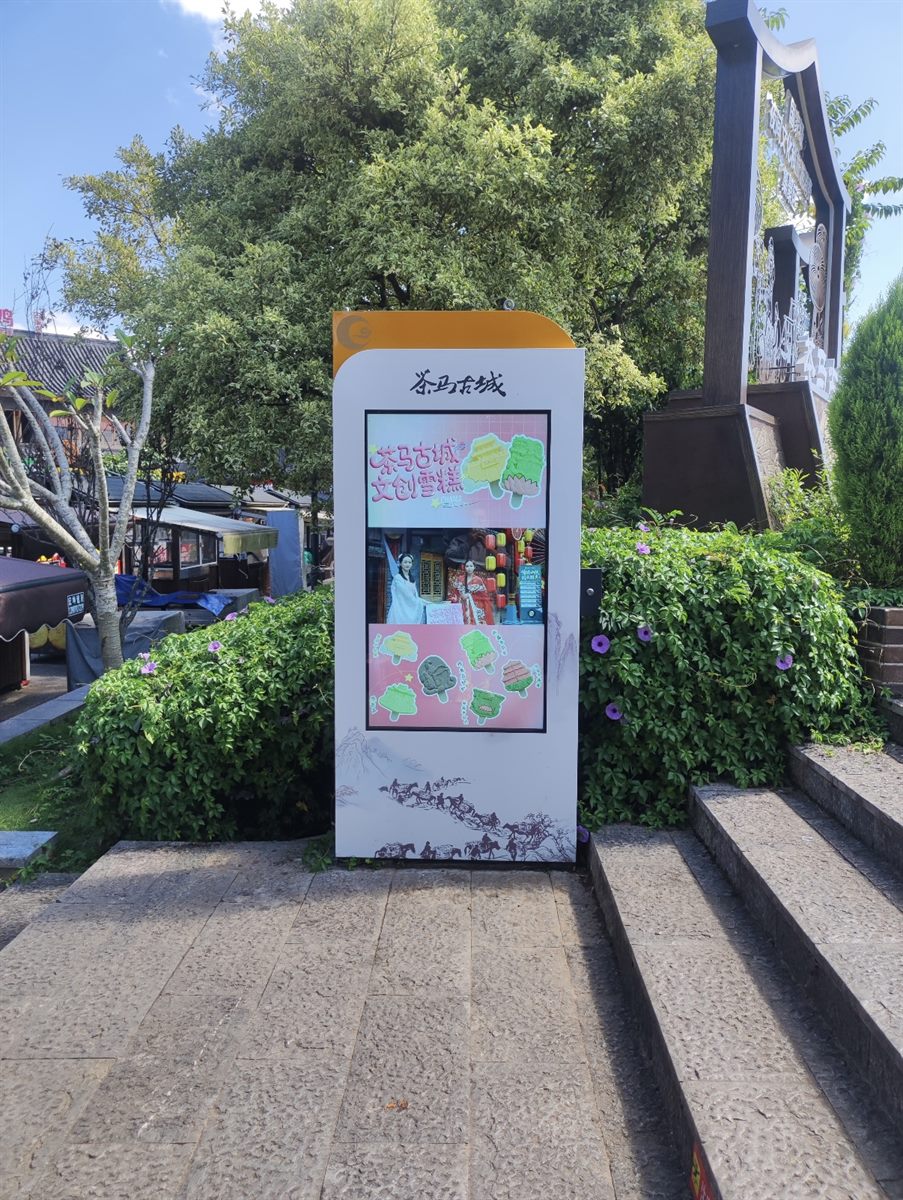

Operators running kiosks, fuel dispensers, parking gates, outdoor self-service terminals, and platform displays at transit stations report the same frustrating pattern: within a year of installation, the screen starts to fog up from the inside, fine water droplets appear behind the glass, image contrast drops, and end users start reporting that "the screen looks broken." In almost every case, the root cause is the same — outdoor touchscreen condensation.

This article breaks down, from an engineering standpoint, what actually causes outdoor touchscreen condensation, how it finds its way into the bonding layer, and how KoreTouch's structural design addresses it at the source.

What Actually Causes Outdoor Touchscreen Condensation: Temperature Differential, Not a Leak

The first assumption is usually "the seal must have failed and rainwater got in." But field teardown analysis tells a different story: outdoor touchscreen condensation is, in most cases, not caused by liquid water intrusion at all. It is caused by moisture already present in the air reaching its dew point inside the display structure as temperatures change.

Outdoor equipment bakes in direct sunlight during the day and cools rapidly at night, and it experiences significant seasonal temperature swings as well. If there is an air gap between the cover glass and the LCD panel — the traditional "frame bonding" or "air bonding" construction — that trapped air already contains water vapor. When the outside temperature drops sharply and the air inside the gap cools below its dew point, that vapor condenses directly on the inner surface of the cover glass or on the LCD module itself.

What makes this worse is that even an enclosure rated IP65 or higher is not immune over time. Repeated thermal cycling causes the housing to expand and contract, creating a pressure imbalance between the inside and outside of the unit — a "breathing effect." As gaskets and seals age, this breathing action can draw humid outside air in through microscopic gaps. Even if each cycle introduces only a trace amount of moisture, it accumulates over years of service. Whenever the right temperature differential occurs, outdoor touchscreen condensation reappears — and it tends to get worse, not better, the longer a unit stays in the field.

How Outdoor Touchscreen Condensation Gets Into the Bonding Layer

To understand why outdoor touchscreen condensation consistently shows up inside the bonding layer, it helps to look at the layered structure of a typical industrial touchscreen. From the outside in, a conventional stack is: surface treatment, cover glass, (air gap), PCAP touch sensor, (air gap), LCD module.

Those two air gaps are the problem. They exist mainly for ease of assembly and rework, but they are also exactly where moisture collects — and where it is hardest to remove:

• An air gap is, by definition, a place where water vapor can exist. There is no such thing as perfectly dry trapped air over the service life of an outdoor product.
• The cover glass is where the temperature swings fastest. It is the component most directly exposed to the outside environment, so its inner surface is typically the first place to drop below the dew point.
• It is the hardest place to service. Once outdoor touchscreen condensation appears inside the bonding layer, the end user can see it but cannot clean it. The unit has to be pulled and disassembled.

In other words, outdoor touchscreen condensation is not a one-time leak event. It is a systemic issue created by the air gap built into the stack itself. As long as the air gap exists, the risk of outdoor touchscreen condensation never really goes away.

The Real-World Impact of Outdoor Touchscreen Condensation

• Reduced readability. Droplets and fogging obstruct the image directly, and in bright sunlight this compounds existing glare and reflection issues, making the unit nearly unusable.
• Long-term corrosion risk. Repeated condensation cycles accelerate oxidation and corrosion of internal metal traces, the ITO conductive layer, and solder joints, shortening the unit's usable life.
• Touch performance degradation. Moisture near the touch sensor can cause signal drift, false touches, or complete touch failure — a particular concern for PCAP touchscreens.
• High maintenance cost. Because outdoor touchscreen condensation typically occurs inside the bonding layer, it cannot be addressed on-site. The unit has to be returned for repair or replacement.

Solving It at the Structural Level: Eliminate the Air Gap

Since outdoor touchscreen condensation originates in the air gap between bonded layers, the most direct and durable fix is to remove that air gap entirely — which is precisely what optical bonding is designed to do.

KoreTouch applies optical bonding using LOCA (Liquid Optical Clear Adhesive) in a Class 1,000 cleanroom, filling the space between the cover glass, the PCAP touch sensor, and the LCD module with a clear, solid adhesive layer instead of air. This delivers three practical benefits:

• With no air gap, there is no space left for water vapor to condense — removing the physical precondition for outdoor touchscreen condensation at its source;
• Eliminating the air gap also removes the internal reflections associated with air-bonded stacks, significantly improving readability in direct outdoor sunlight;
• The adhesive layer itself adds mechanical support, improving impact resistance across the full assembly.

KoreTouch specifically uses WACKER silicone as the optical bonding medium rather than lower-cost acrylic adhesives. Silicone has a much lower cure shrinkage rate than acrylic adhesives (well under acrylic's typical 3–5%), resists yellowing and embrittlement under prolonged UV exposure, and is far less prone to trapping bubbles during the bonding process. Trapped bubbles matter here because each one is effectively a new, microscopic air gap — a fresh potential site for outdoor touchscreen condensation to form.

Addressing Outdoor Touchscreen Condensation at the System Level

Optical bonding solves outdoor touchscreen condensation within the bonded stack, but a display genuinely built for outdoor deployment needs to be engineered as a complete system:

• Front-face sealing and IP rating. The housing, button, and cable-entry seals and the unit's actual IP rating form the first line of defense against liquid water and dust ingress from outside.
• Matched glass, sensor, and controller design. Thicker cover glass attenuates the touch signal more, requiring the controller to be tuned specifically to that glass thickness. This also affects how the bonded stack behaves mechanically under thermal cycling.
• PCAP water rejection. This capability is primarily built to distinguish a water film from a real finger touch on the surface, but a controller platform mature enough to do that reliably also reflects a broader engineering discipline around humid, wet environments.
• Surface treatment. AR anti-reflective, AF anti-fingerprint, and AG anti-glare coatings, combined with Mohs 7-hardness tempered glass, don't solve condensation directly, but they reduce how long surface moisture lingers.

What to Specify to Reduce Outdoor Touchscreen Condensation Risk

• Whether optical bonding is required, and which adhesive type (silicone vs. acrylic);
• Cover glass thickness and type, since touch tuning depends on it;
• The expected temperature and humidity range, including diurnal and seasonal swings;
• Front-face sealing structure and required IP rating;
• Required touch modes (bare finger, wet-touch, glove-touch, stylus) and the electromagnetic environment.

Key Takeaways

• Outdoor touchscreen condensation is usually caused by water vapor reaching its dew point inside an air gap in the bonded stack — not by a direct leak.
• The air gap between the cover glass, touch sensor, and LCD is the primary site where outdoor touchscreen condensation forms and the hardest place to service.
• Left untreated, outdoor touchscreen condensation degrades readability, accelerates corrosion, and can impair touch performance over time.
• Optical bonding with a stable, low-shrinkage adhesive such as silicone LOCA removes the air gap and eliminates the physical precondition for condensation.
• Lasting protection requires a matched system: sealing and IP rating, glass-sensor-controller tuning, and surface treatment, in addition to optical bonding.
