7″ capacitive touch monitor
7″ Industrial Touch Display
Multi-touch PCAP monitor from KoreTouch’s industrial series: WVGA 800 × 480 a-Si TFT-LCD, IP65 front sealing, and sheet-metal housing with VESA 75 × 75 mounting. Supports wet and glove touch; optical bonding and surface treatment options per project.
- Industrial LCD, rated for 24/7; brightness 400 cd/m² (upgrade path to 1,200 nits).
- IP65 front; rear per enclosure design. Operating range -30 °C ~ 85 °C.
- PCAP over 2 mm cover; HDMI signal (VGA / DVI / DisplayPort optional). DC 12 V in (9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,200 nits optional
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Machine HMI, setpoints, and alarms in automation cells
- Test & measurement and bench equipment fronts
- Kiosk / public-facing (validate glass & sealing for your environment)
- OEM device integration with custom stack & I/O (contact sales)
Specifications
Data sourced from the KoreTouch spec PDF. *Additional custom specifications available on request.
LCD panel
| Screen size | 7″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 155.1 mm × 86.9 mm |
| Pixel pitch | 0.1926 mm × 0.1790 mm (134 PPI) |
| Resolution | 800 (RGB) × 480 WVGA |
| Aspect / display type | 16:9 (per datasheet) / a-Si TFT-LCD |
| Contrast ratio | 500:1 |
| Color | 262K / 16.7M, 50% NTSC (typ.) |
| Brightness | 400 cd/m² (upgradeable to 1,200 nits) |
| Backlight | LED, 20,000 h (per datasheet) |
| Viewing angles (CR=10, typ.) | 70° / 70° / 50° / 70° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 25 ms |
Touch screen
| Technology | Projected capacitive, multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |

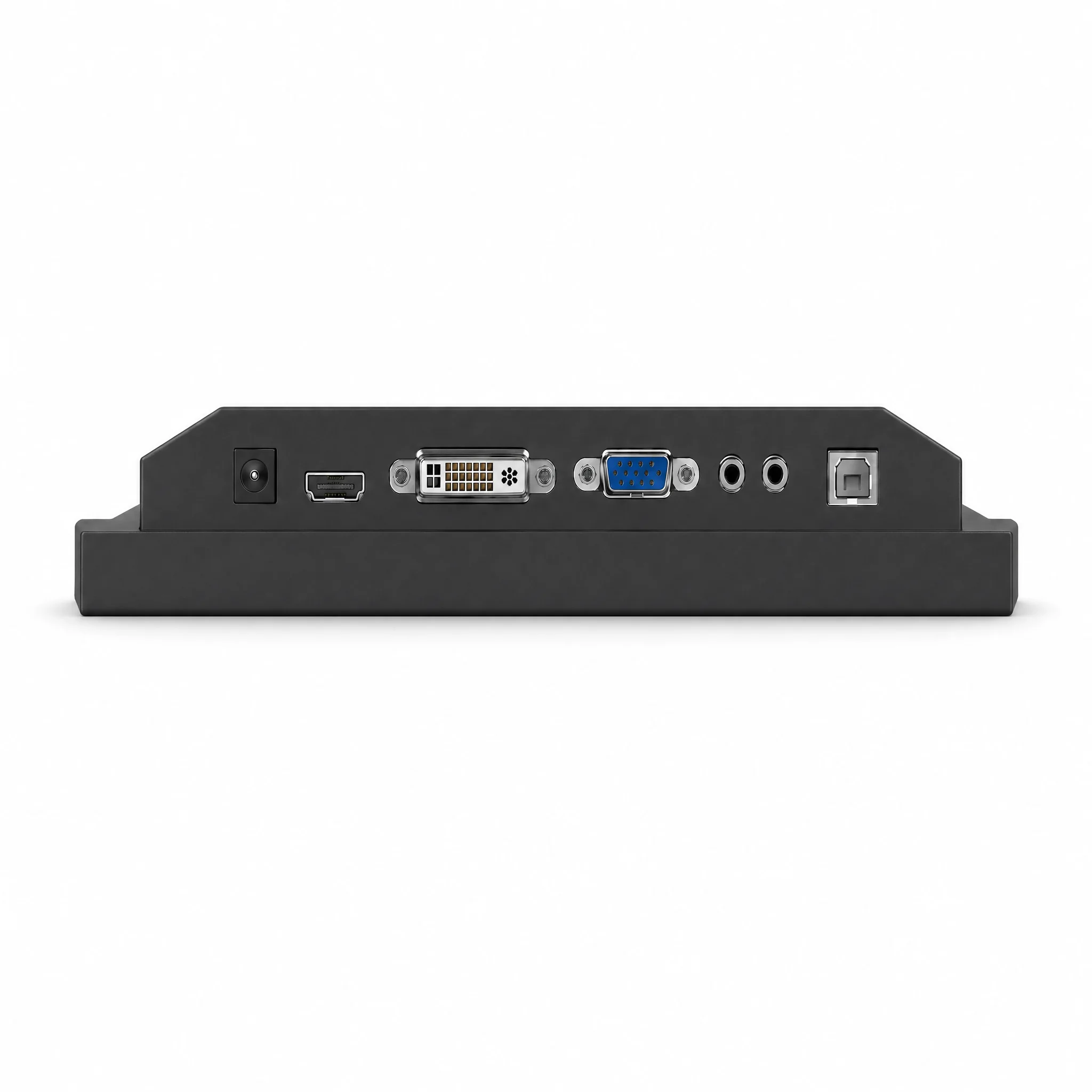

Connectors & power
| Video | HDMI (VGA / DVI / DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 12 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 190.8 × 127.4 × 37 mm |
|---|---|
| Operating temperature | -30°C ~ 85°C |
| Storage temperature | -30°C ~ 85°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |

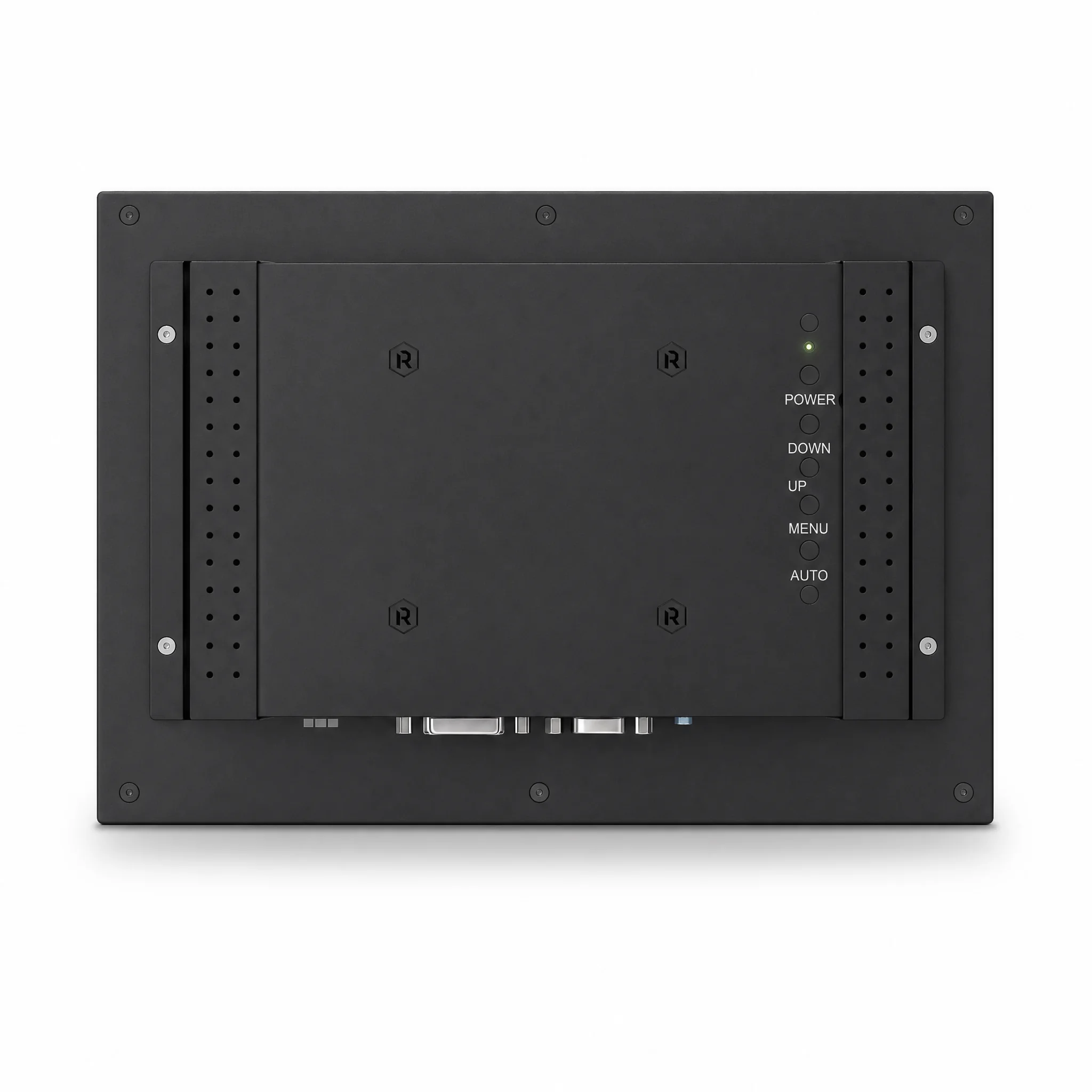

| VESA mount | 75 × 75 |
| Weight | 1.5 kg |
| Warranty | 1 year |
Outline & drawing
Key numbers match the spec sheet; corner radius R4.7 mm, VESA pattern 75 × 75 with 4× M4 holes as shown on the mechanical drawing. Use the download for full tolerances and production approval.
Envelope
190.8 × 127.4 × 37 mm
Active + mounting
Active: 155.1 × 86.9 mm · VESA 75 + 4-M4
