7″ high-brightness PCAP monitor — reference project
7″ High-Brightness Touch Monitor
Completed reference program: compact 7″ high-brightness PCAP monitor with WVGA 800 × 480 panel, 1,200 cd/m² typical brightness, IP65 front / IP40 back sealing, and sheet-metal housing with customized rear mounting (6×M5 per drawing).
- Industrial LCD, rated for 24/7; brightness 1,200 cd/m² (high-brightness panel).
- IP65 front / IP40 back. Operating −20 °C ~ 70 °C; storage −30 °C ~ 80 °C.
- PCAP over 2 mm cover; HDMI signal (VGA / DVI / DisplayPort optional). DC 12 V in (9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,200 nits optional
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Indoor high-brightness HMI where ambient light exceeds standard 400 nit panels
- Front-embedded fascia with sealed IP65-front / IP40-back enclosure
- Compact footprint with customized rear 6×M5 mounting pattern
- Programs requiring glove-friendly single-touch PCAP and optical bonding options
Specifications
Values below match koretouch-kt-07hbm-i01-specifications.pdf (reference project edition). *Additional custom specifications available on request.
LCD panel
| Screen size | 7″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 154.21 mm × 85.92 mm |
| Pixel pitch | 0.1926 mm × 0.1790 mm (134 PPI) |
| Resolution | 800 (RGB) × 480 WVGA |
| Aspect / display type | 16:9 (per datasheet) / a-Si TFT-LCD |
| Contrast ratio | 1000:1 (typ.) |
| Color | 16.7M |
| Brightness | 1200 cd/m² |
| Backlight | 50,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 85° / 85° / 85° / 85° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 10 ms (typ.) |
Touch screen
| Technology | Capacitive single-touch, EETI (glove touch) |
|---|---|
| Interface | USB |
| Surface treatment | AG coating |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |
Connectors & power
| Video | HDMI (VGA / DVI / DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 4 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 210.3 × 140.3 × 45 mm |
|---|---|
| Operating temperature | −20°C ~ 70°C |
| Storage temperature | −30°C ~ 80°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | Customized (6×M5 per drawing) |
| Weight | 4.8 kg |
| Warranty | 1 year |

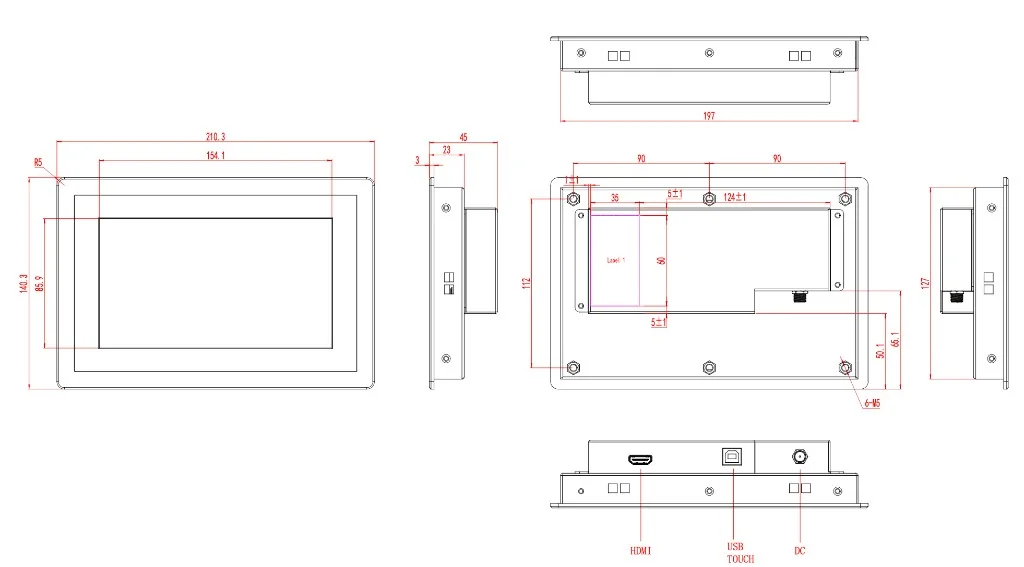

Outline & drawing

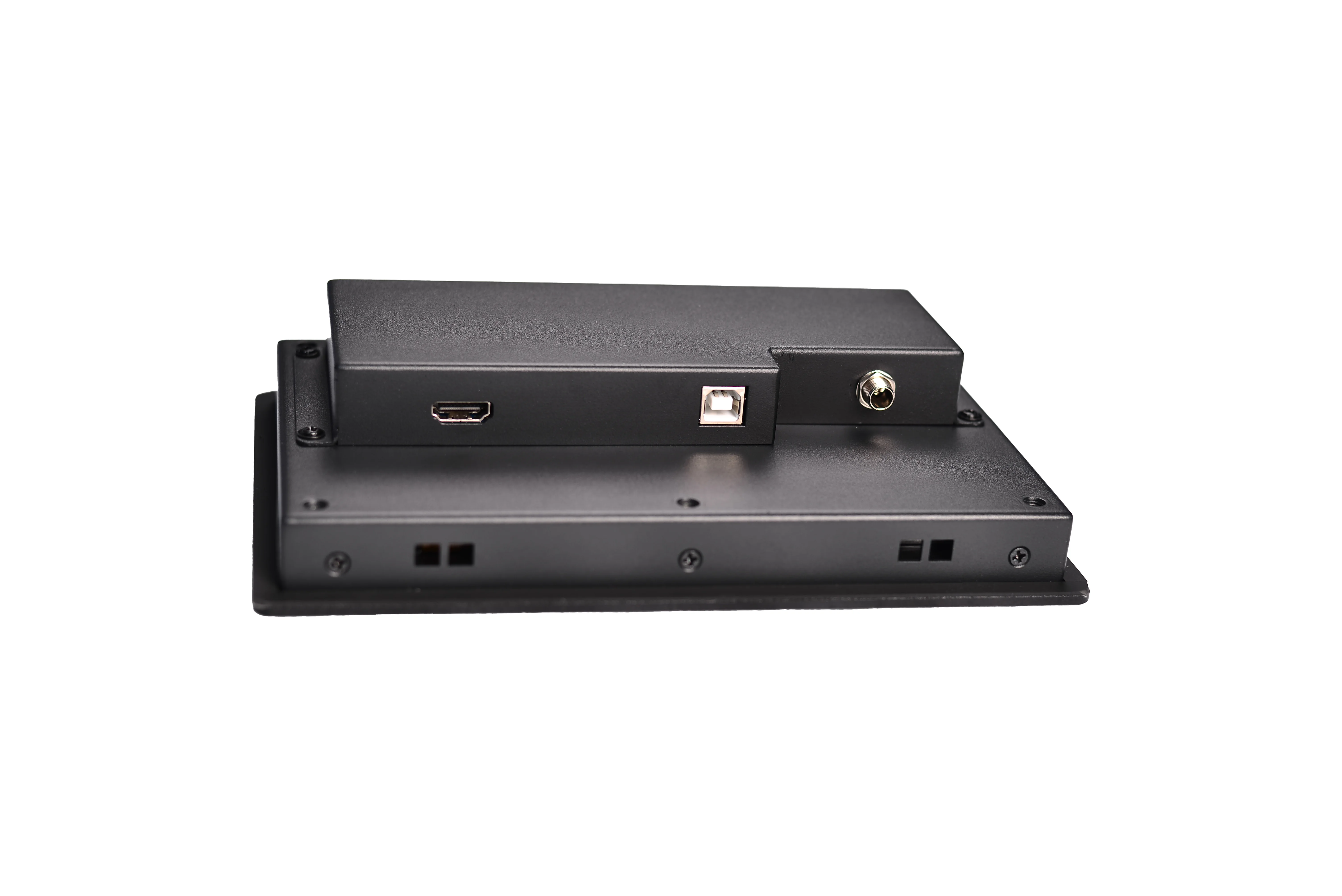

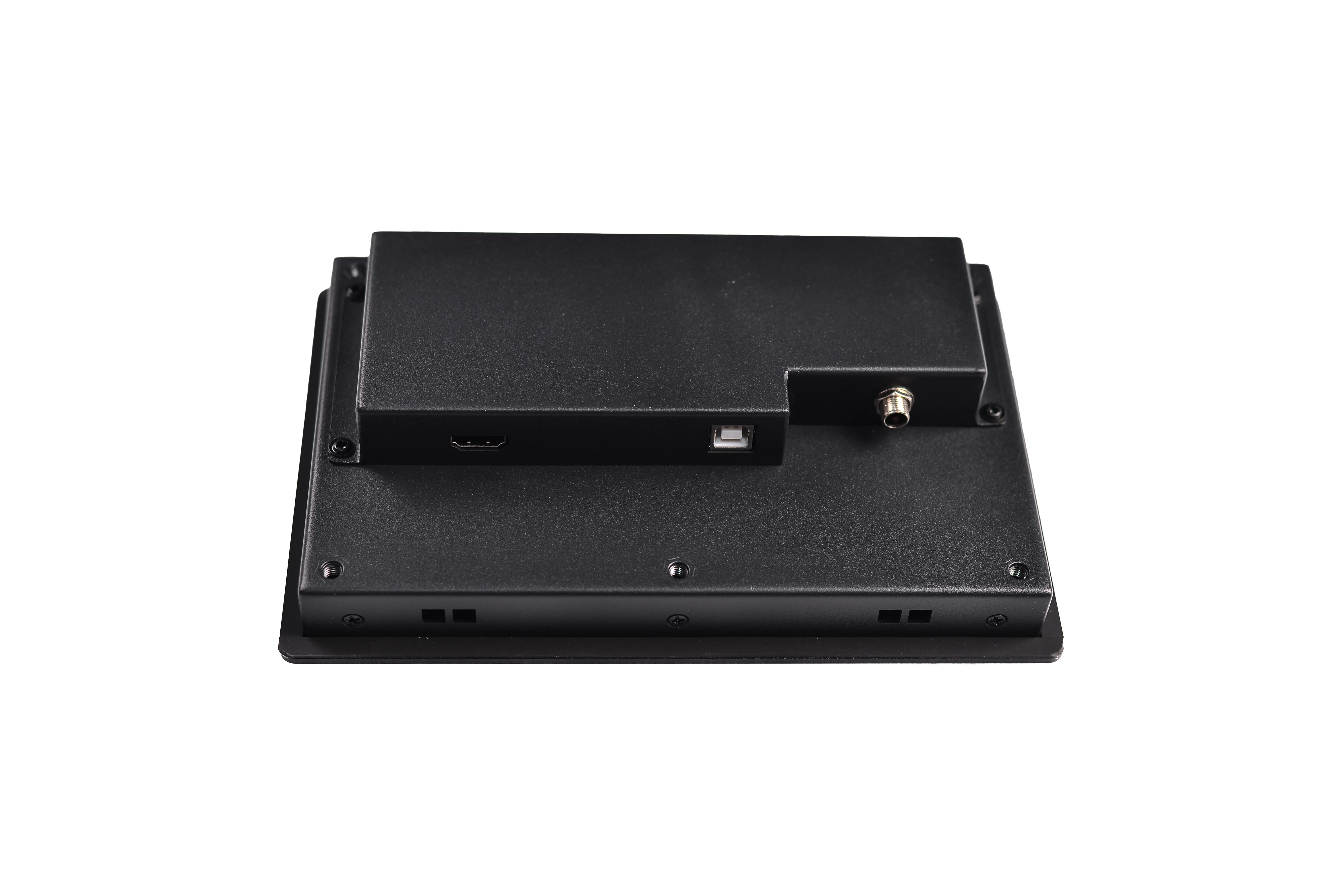

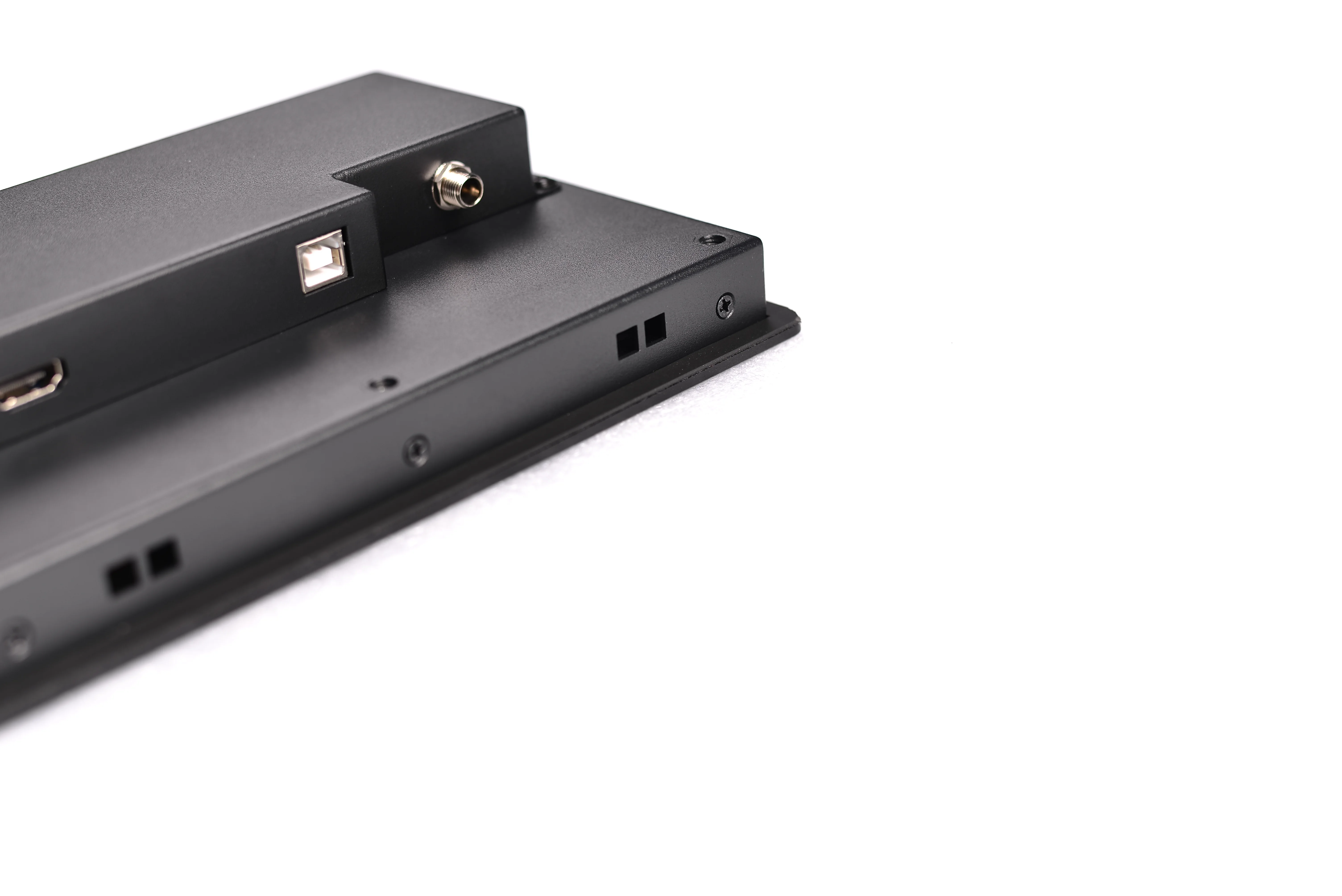

Front-embedded housing per customer mechanical: envelope 210.3 × 140.3 × 45 mm, corner R5, rear pattern 6×M5 (180 × 112 mm). Bottom I/O: HDMI, USB touch, DC. Use the drawing for tolerances and production approval.
Envelope
210.3 × 140.3 × 45 mm
Active + mounting
Active: 154.21 × 85.92 mm · 6×M5 (180×112)
