37″ bar type PCAP display
37″ Bar Type LCD Display
Ultra-wide bar-format PCAP monitor from KoreTouch: 1920 × 540 a-Si TFT-LCD, IP65 front rated enclosure, sheet-metal housing with profiles, and VESA 400 × 200 mounting. Wet and glove capable; optical bonding and AG / AR / AF glass available as project options.
- Industrial LCD, rated for 24/7; brightness 1,500 cd/m² (high-brightness bar panel).
- IP65 front rated. Operating −20 °C ~ 60 °C; storage −20 °C ~ 60 °C.
- PCAP over 3 mm tempered glass; HDMI (VGA / DVI / DP optional). DC 12 V (≤ 105 W).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,500 nits optional
- Wide-temperature design, high reliability
- IP65 front rated enclosure — align sealing and cable routing with your install
Typical applications
- Retail shelf-edge, grab-and-go lanes, and narrow fascia signage
- Public transportation information strips and wayfinding
- Digital menu boards, hospitality, and ultra-wide messaging bands
- Custom aspect ratios, bonding, and input options (contact sales)
Specifications
Values below match koretouch-kt-370hbm-i01-specifications.pdf (same edition as the downloadable file in Documents). *Additional custom specifications available on request.
LCD panel
| Screen size | 37″ |
|---|---|
| IP rating | IP65 front |
| Active area (H × V) | 904.0 mm × 254.0 mm |
| Pixel pitch | 0.471 mm × 0.471 mm (~54 PPI) |
| Resolution | 1920 × 540 (>3:1) |
| Display type | a-Si TFT-LCD |
| Contrast ratio | 4000:1 (typ.) |
| Color | 16.7M / 1.07B, 72% NTSC |
| Brightness | 1500 cd/m² |
| Backlight | LED / 50,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 8 ms (typ.) |
Touch screen
| Technology | Capacitive multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 3 mm |

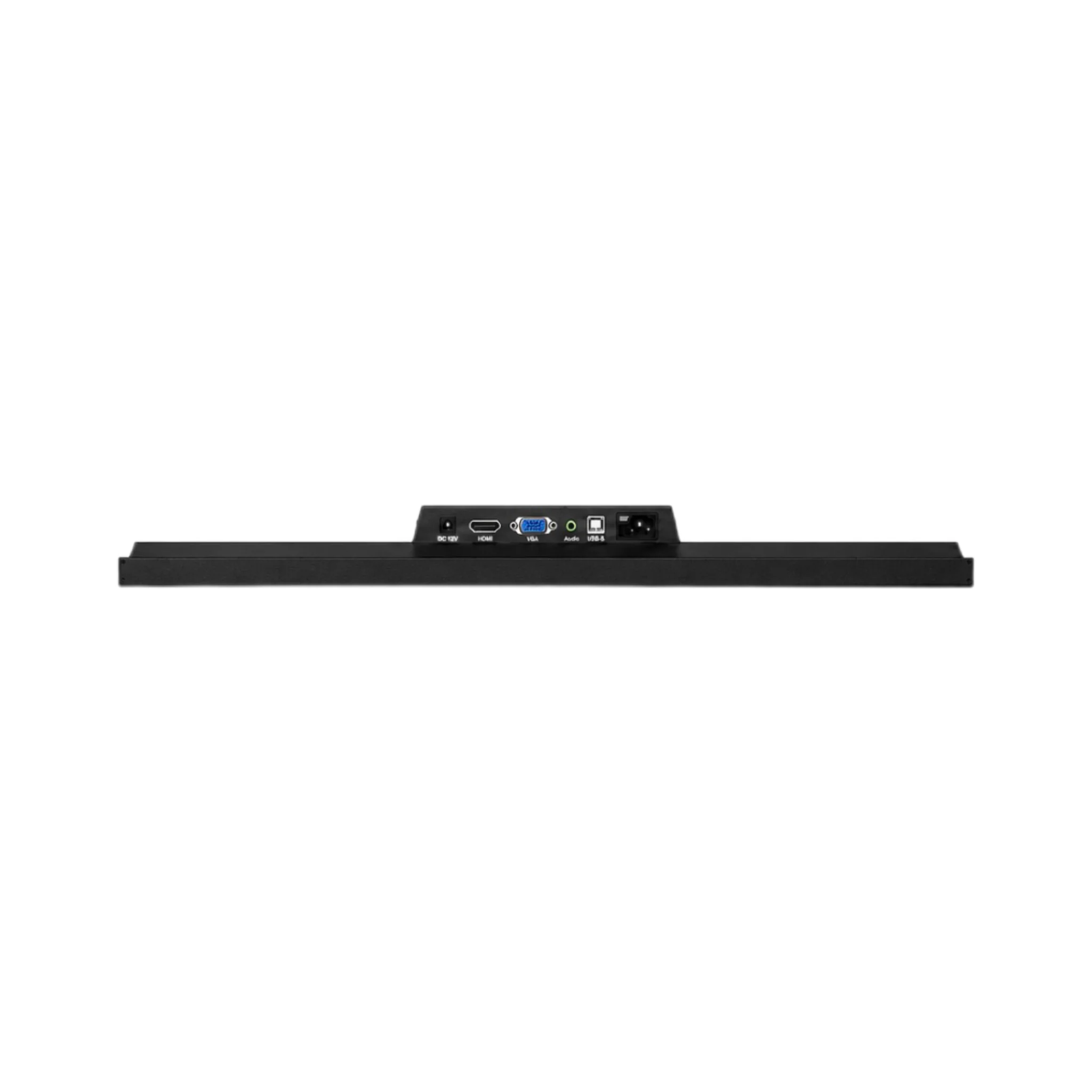

Connectors & power
| Video | HDMI + VGA + DVI (DisplayPort optional) |
|---|---|
| Power input | DC 12 V |
| Output power | ≤ 105 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 954.8 × 313.8 × 68.5 mm |
|---|---|
| Operating temperature | −20°C ~ 60°C |
| Storage temperature | −20°C ~ 60°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |

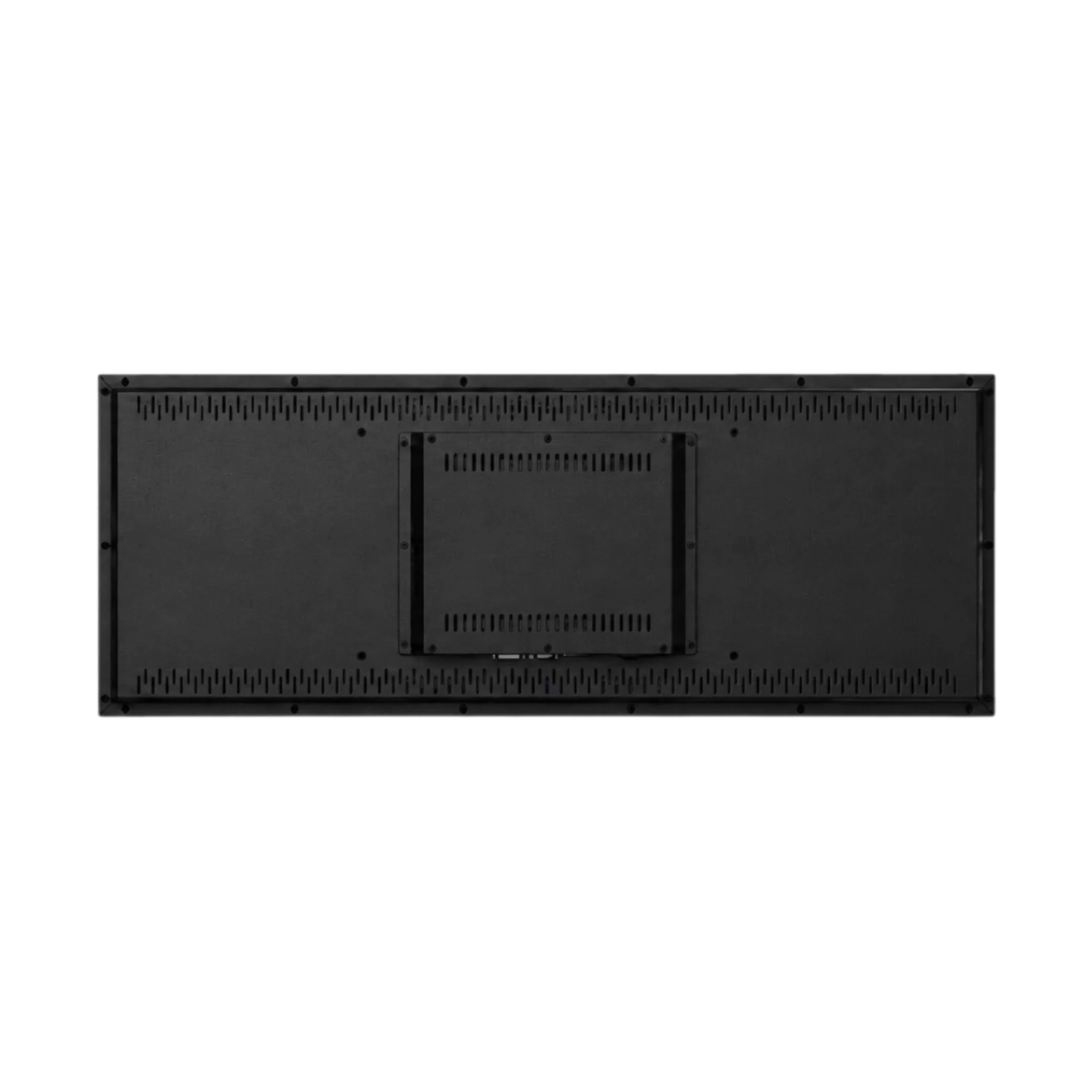

| VESA mount | 400 × 200 |
| Weight | 13 kg |
| Warranty | 1 year |

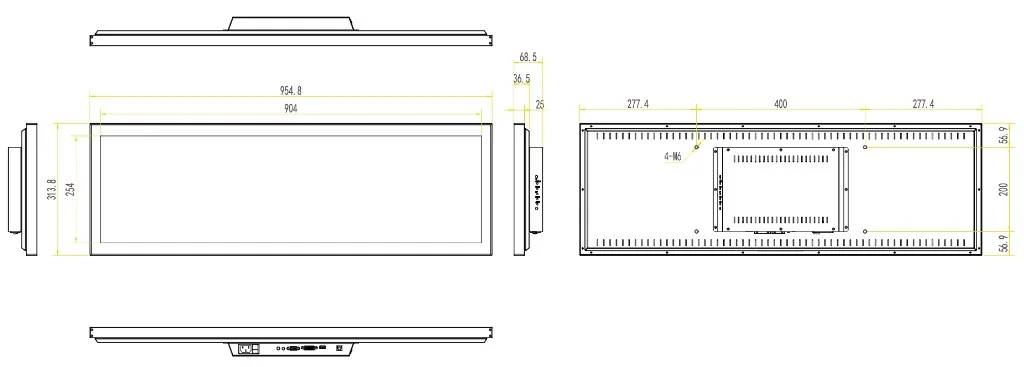

Outline & drawing
Envelope and drill pattern follow the dimensional drawing: VESA 400 × 200 with 4× M6 pilot holes per drawing. Overall depth 68.5 mm. Use the drawing below for tolerances, cutouts, and production approval.
Envelope
954.8 × 313.8 × 68.5 mm
Active + mounting
Active: 904.0 × 254.0 mm · VESA 400 × 200 (4×M6)
