32″ PCAP touch monitor
32″ Industrial Touch Display
Multi-touch PCAP monitor from KoreTouch’s industrial series: FHD 1920 × 1080 (16:9) a-Si TFT-LCD, IP65 front / IP40 rear per datasheet, sheet-metal housing, and VESA 400 × 200 mounting (4×M6 per dimensional drawing). AC wide-range input; wet and glove touch; optical bonding and glass finishes available as project options.
- 500 cd/m² typical brightness; upgrade path to 2,000 nits per datasheet.
- IP65 front / IP40 back per datasheet (align install sealing).
- HDMI + VGA + DVI (DisplayPort optional); AC 100–240 V input, ≤ 60 W typical.
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness upgradeable to 2,000 nits per datasheet
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Machine HMI, setpoints, and alarms in automation cells
- Test & measurement and bench equipment fronts
- Kiosk / public-facing (validate glass & sealing for your environment)
- OEM device integration with custom stack & I/O (contact sales)
Specifications
Values below match koretouch-kt-320hbm-i01-specifications.pdf (same edition as the downloadable file in Documents). *Additional custom specifications available on request.
LCD panel
| Screen size | 32″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 697.4 mm × 391.8 mm |
| Pixel pitch | 0.36375 mm × 0.36375 mm (69 PPI) |
| Resolution | 1920 (RGB) × 1080 (FHD, 16:9) |
| Display type | a-Si TFT-LCD |
| Contrast ratio | 4000:1 |
| Color | 16.7M, 99% sRGB |
| Brightness | 500 cd/m² (typ.) |
| Backlight | WLED, 50,000 h |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° |
| Response time (Tr+Td, typ.) | 8 ms |
Touch screen
| Technology | Projected capacitive, multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 3 mm |
Connectors & power

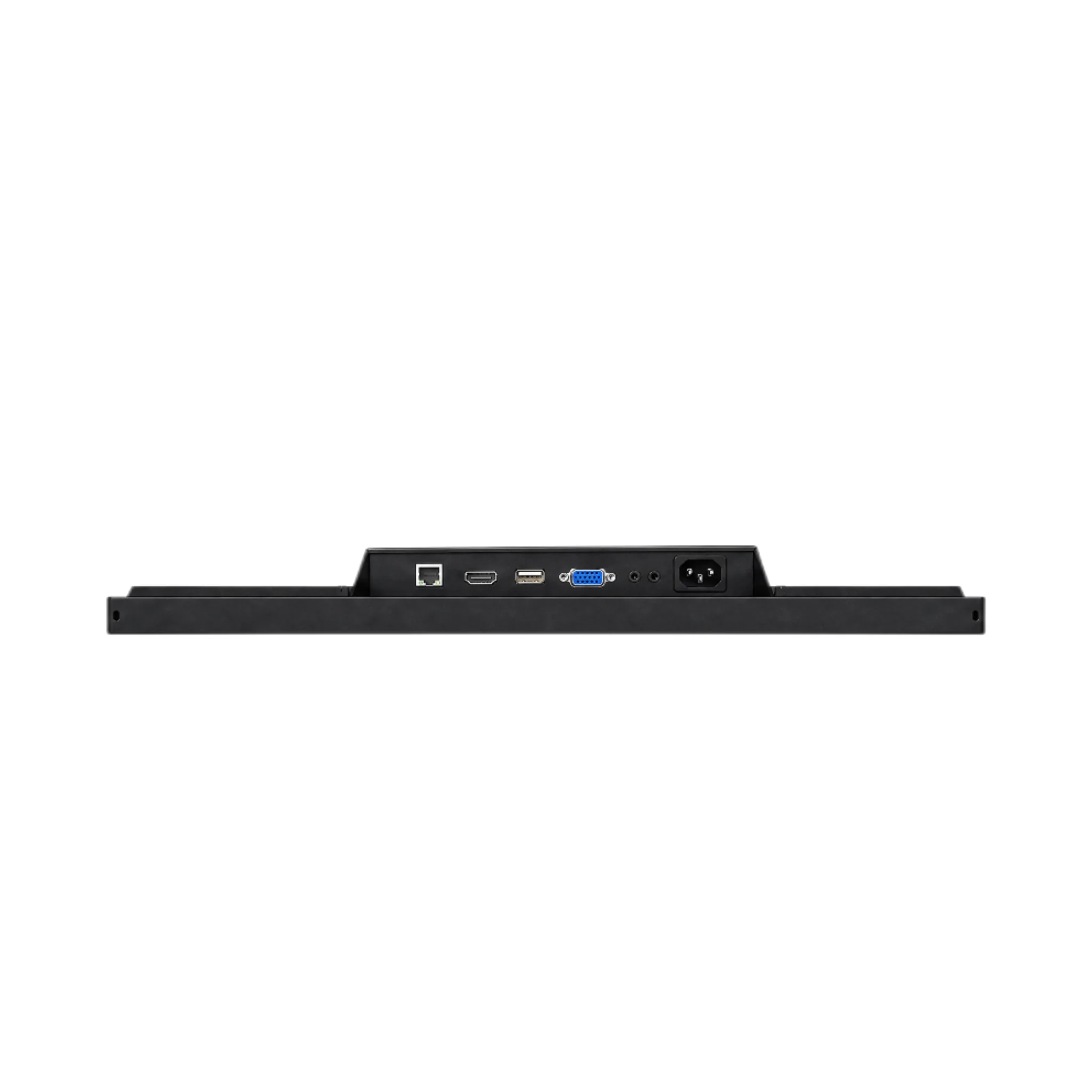

| Video | HDMI + VGA + DVI (DisplayPort optional) |
|---|---|
| Power input | AC 100–240 V |
| Output power | ≤ 60 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 752 × 457 × 57 mm |
|---|---|
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | −20°C ~ 60°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |

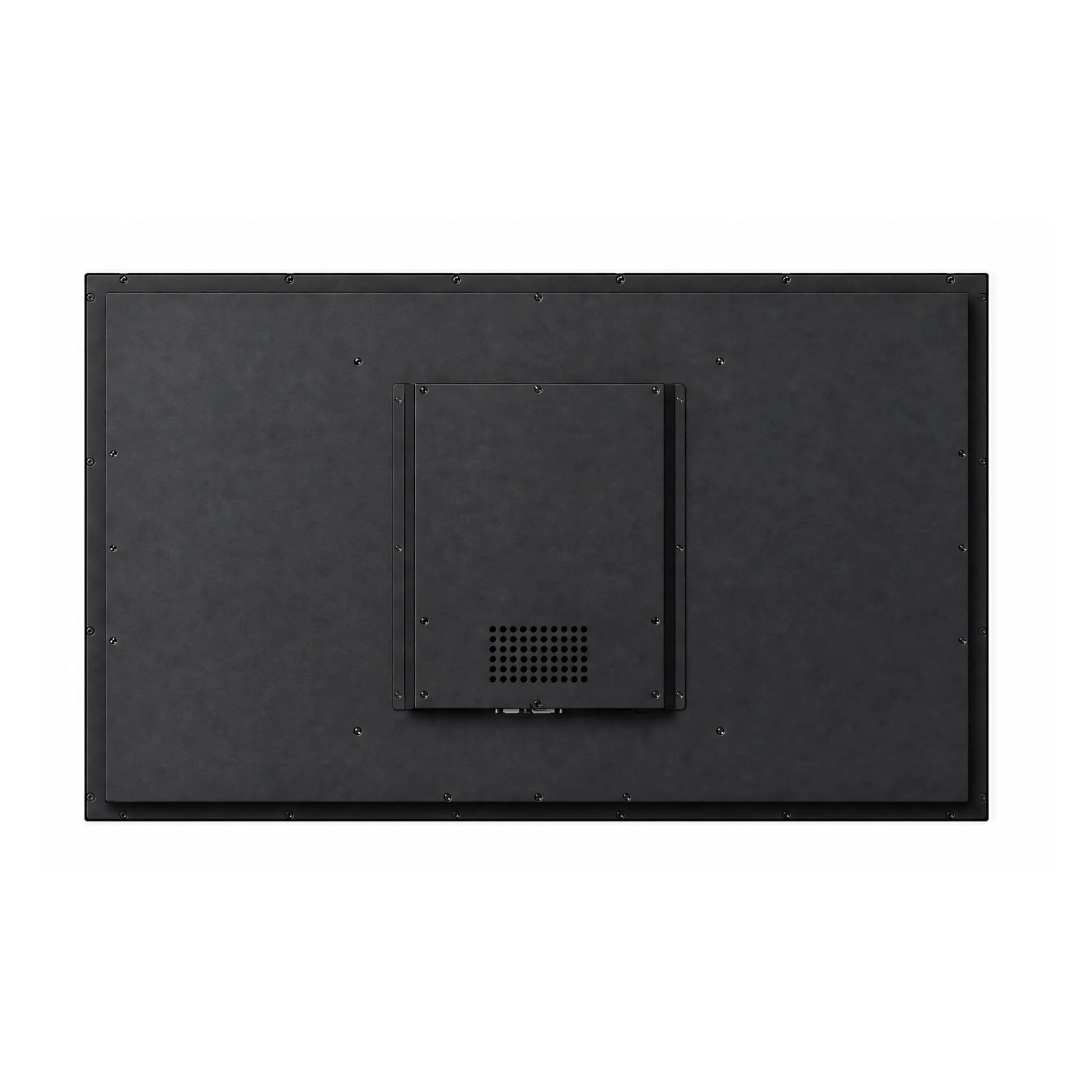

| VESA mount | 400 × 200 |
| Weight | 15 kg |
| Warranty | 1 year |
Outline & drawing
Envelope and drill pattern follow the dimensional drawing: VESA 400 × 200 with 4× M6 pilot holes per drawing. Typical front stack about 25 mm; overall depth 57 mm. Use the drawing below for tolerances, cutouts, and production approval.
Envelope
752 × 457 × 57 mm
Active + mounting
Active: 697.4 × 391.8 mm · VESA 400 × 200 (4×M6)
