32″ high-brightness PCAP monitor with fans — reference project

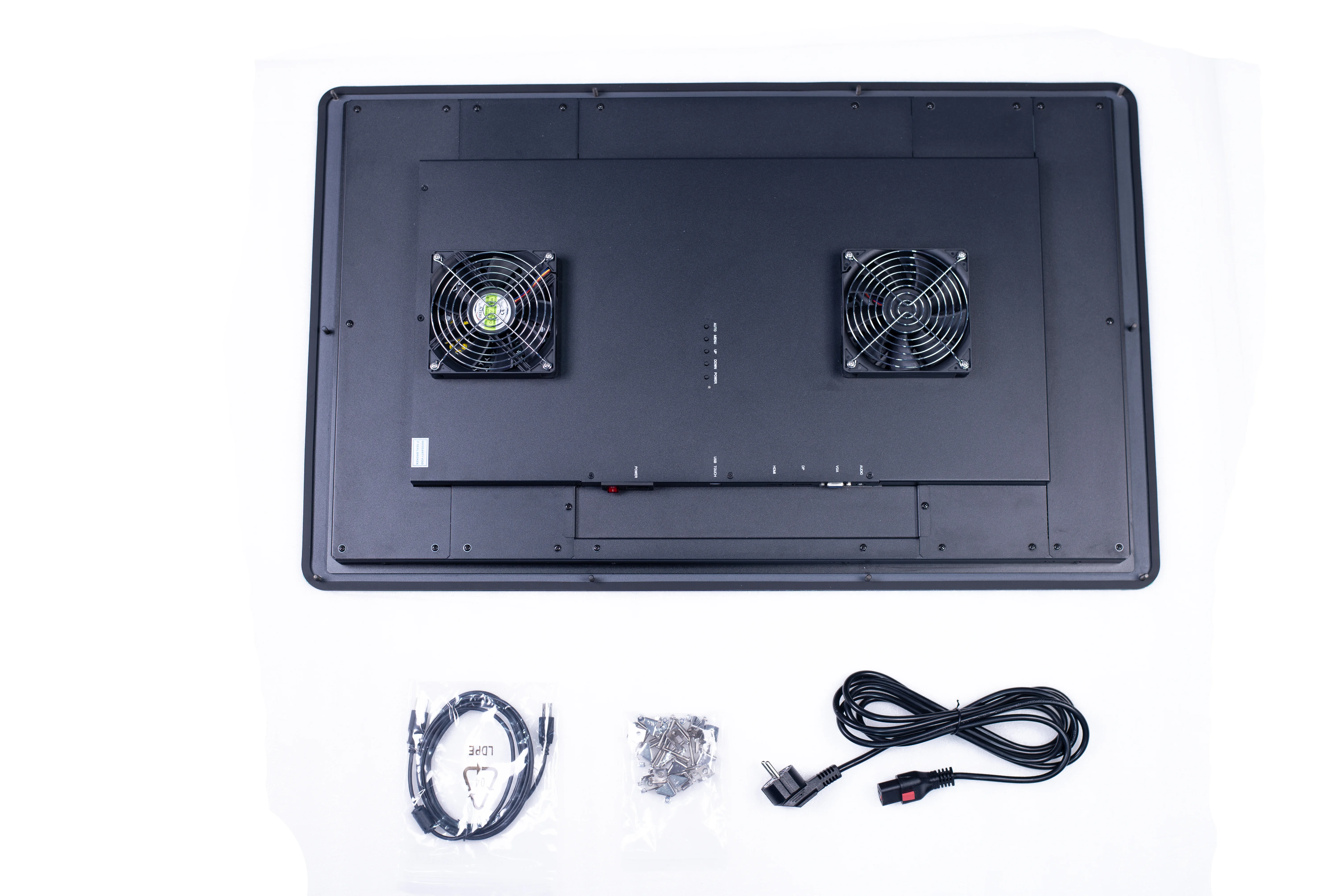

32″ High-Brightness Touch Monitor
Completed reference program: 32″ portrait-format high-brightness monitor with FHD 1920 × 1080, 500 cd/m² panel, IP65 front / IP40 back, integrated dual rear cooling fans, sheet-metal + profiles housing, VESA 400 × 200, and side mounting clips per drawing.
- Industrial LCD, rated for 24/7; brightness 500 cd/m² (upgrade to 2,000 nits optional); dual fans for extended thermal headroom.
- IP65 front / IP40 back. Operating 0 °C ~ 50 °C; storage −20 °C ~ 60 °C.
- PCAP multi-touch (wet / glove); HDMI + VGA + DVI (DP optional). DC 12 V (9–36 V optional, ≤ 62 W).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 2,000 nits optional
- Wide-temperature design, high reliability
- IP65 front / IP40 back · dual rear fans · AG glass (Mohs 7)
Typical applications
- Portrait industrial HMI and signage needing 16:9 FHD with 500 cd/m² brightness
- Enclosed cabinets where dual rear fans improve reliability
- Glove- and rain-capable multi-touch in wash-down or outdoor-adjacent areas
- Custom mounting and I/O (USB touch, audio, HDMI/VGA/DVI, DC) per mechanical
Specifications
Values below match koretouch-kt-320hbm-i01-specifications.pdf (reference project edition). *Additional custom specifications available on request.
LCD panel
| Screen size | 32″ |
|---|---|
| IP rating | IP65 (front) / IP40 (back) |
| Active area (H × V) | 697.4 mm × 391.8 mm |
| Pixel pitch | 0.36375 mm × 0.36375 mm (69 PPI) |
| Resolution | 1920 (RGB) × 1080 FHD, 16:9 |
| Aspect / display type | 16:9 FHD / a-Si TFT-LCD |
| Contrast ratio | 4000:1 |
| Color | 16.7M (99% sRGB) |
| Brightness | 500 cd/m² |
| Backlight | WLED / 50,000 h |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (typ.) |
| Response time (Tr+Td, typ.) | 8 ms (typ.) |
Touch screen
| Technology | Capacitive multi-touch (wet & glove touch) |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional (Mohs 7) |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 3 mm |

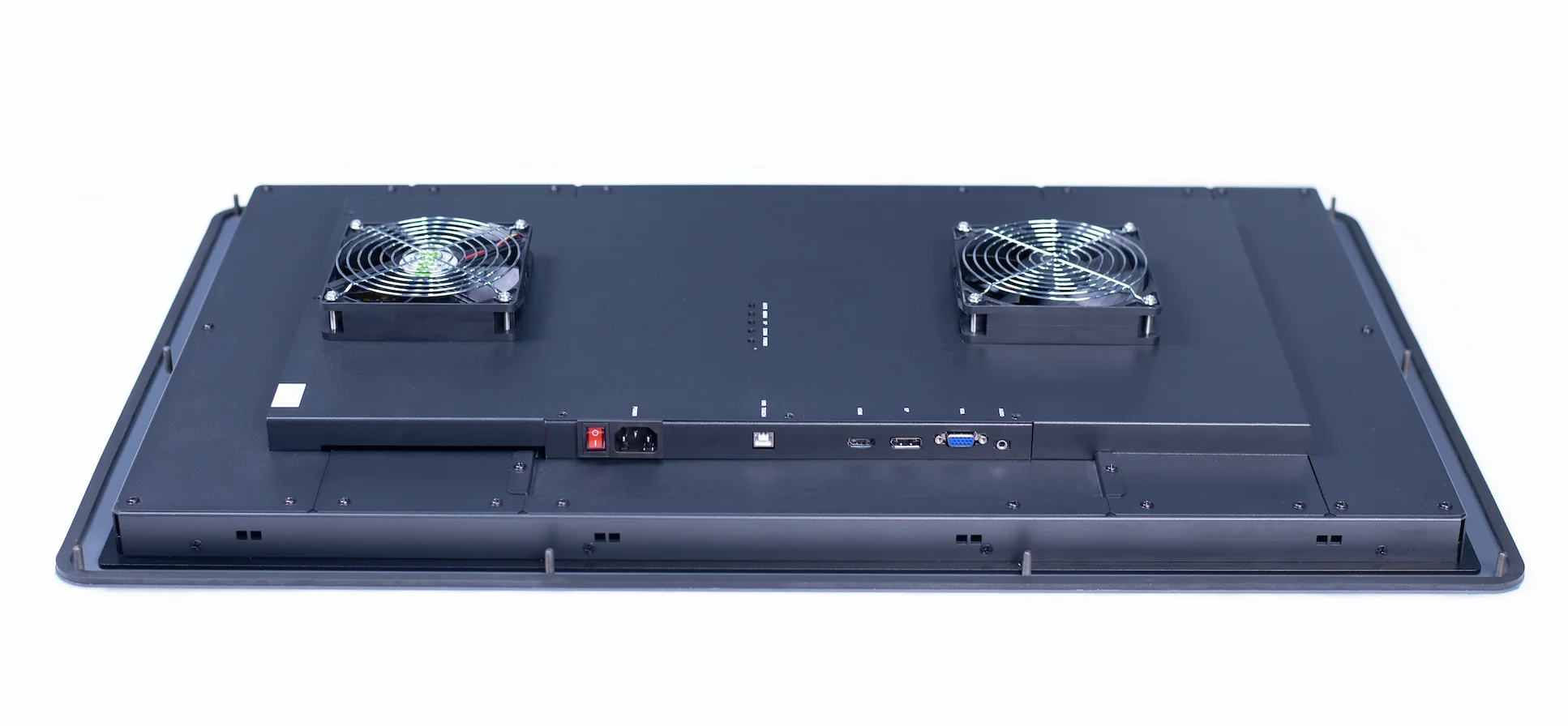

Connectors & power
| Video | HDMI + VGA + DVI |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 62 W |

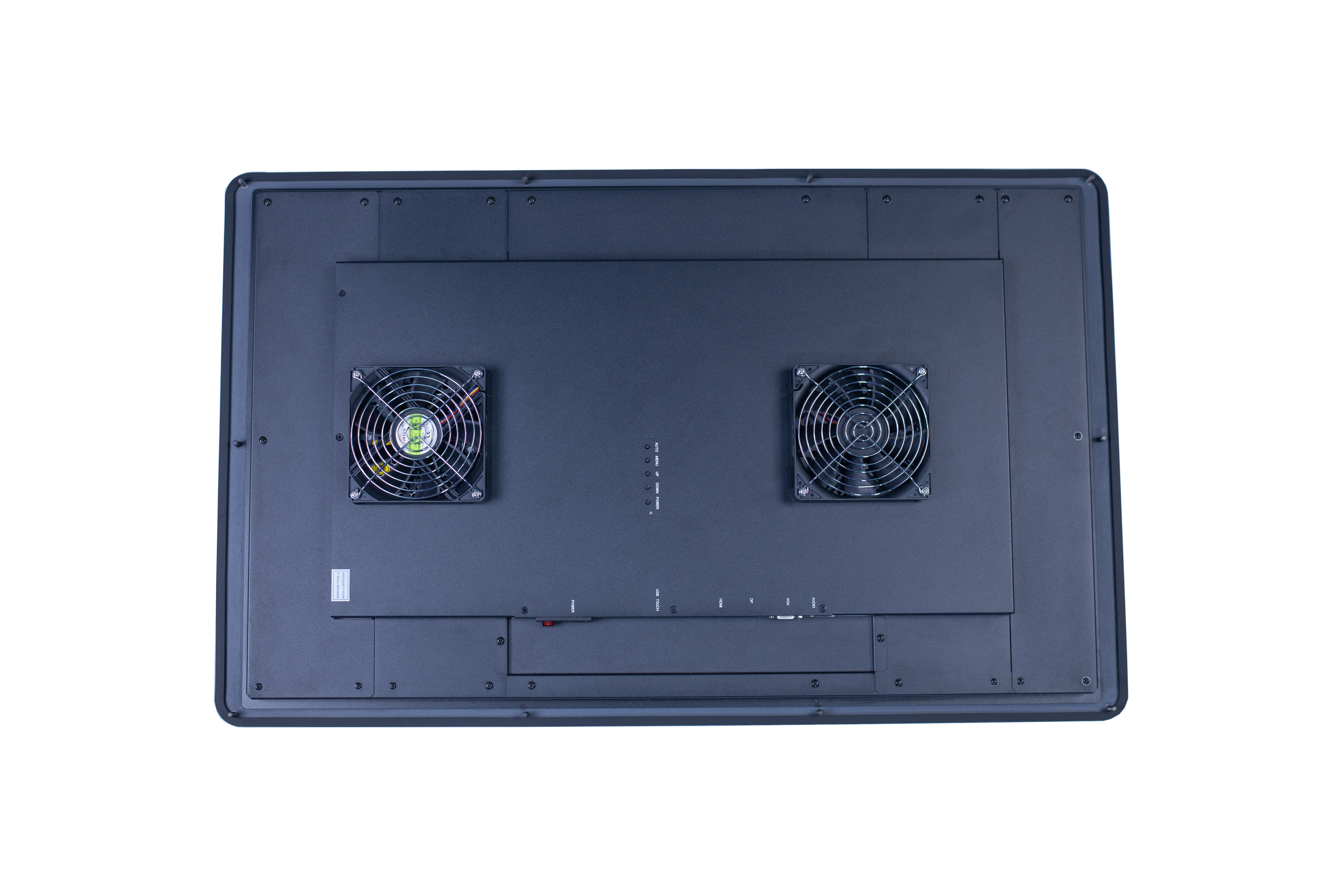

Cooling fans
| Cooling | Dual rear cooling fans (per reference mechanical drawing) |
|---|

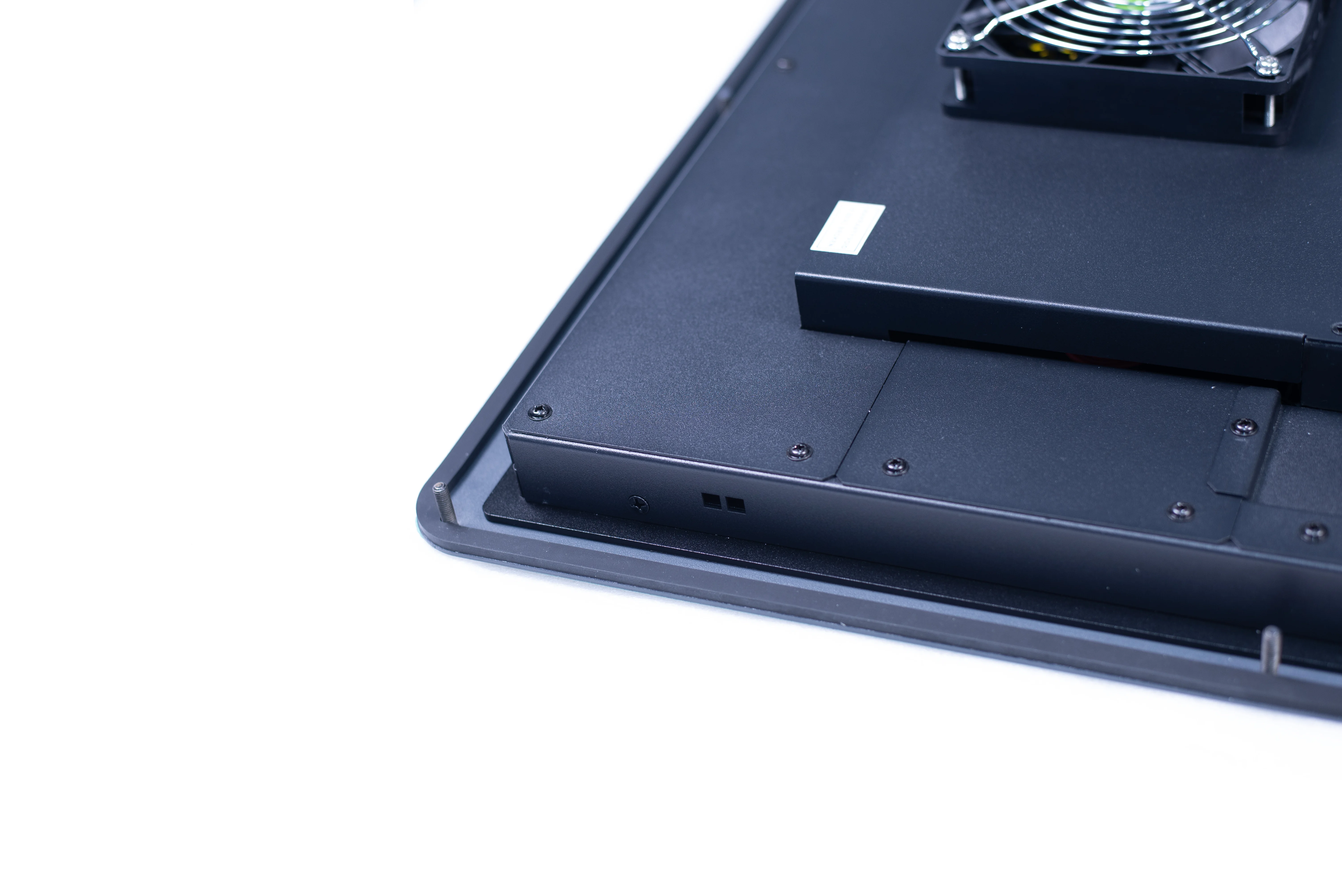

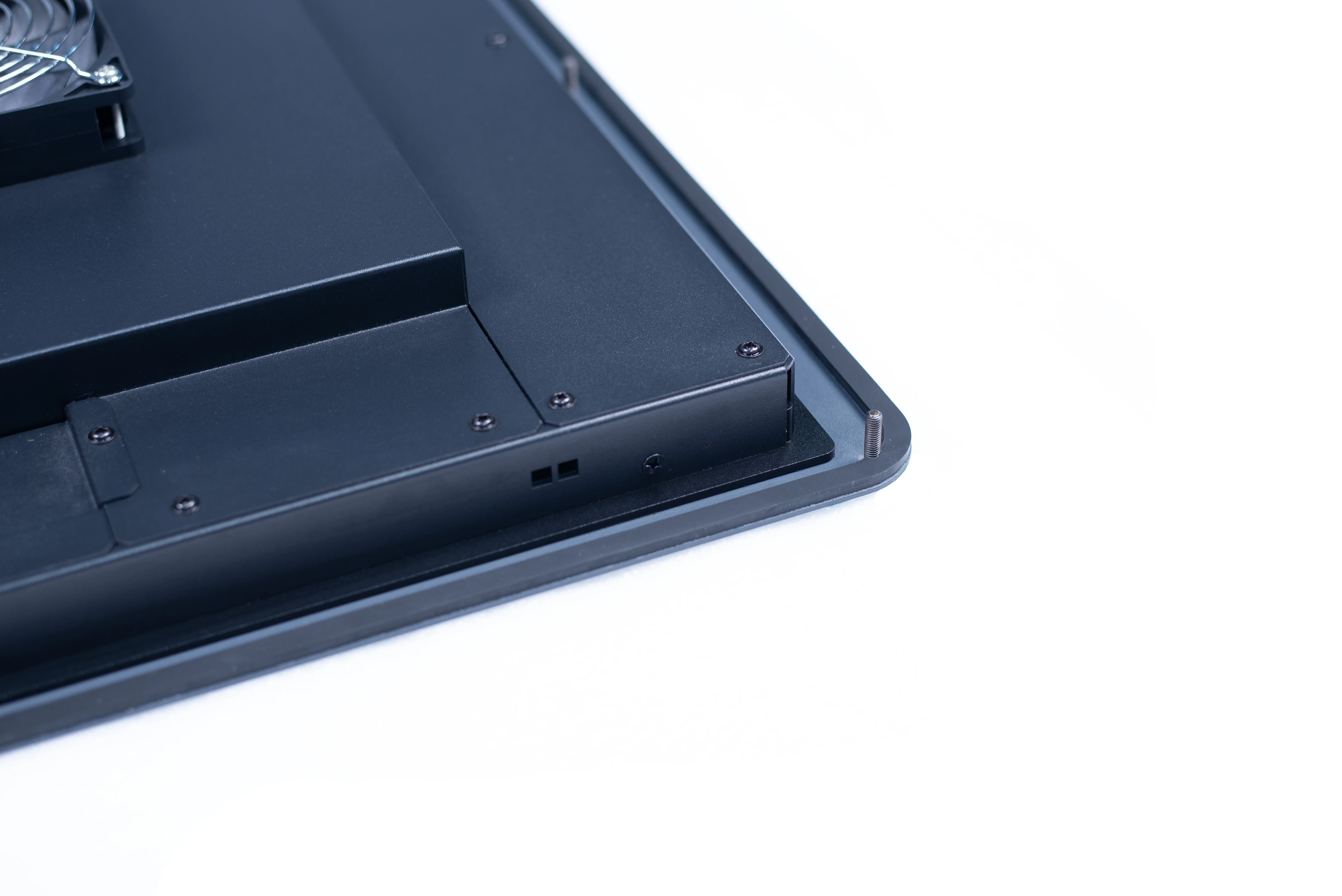

Operation & mechanical
| Overall dimensions (W × H × T) | 510.0 × 822.4 × 79.5 mm (per dimensional drawing) |
|---|---|
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | −20°C ~ 60°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | 400 × 200 |
| Weight | 15 kg |
| Warranty | 1 year |
Outline & drawing

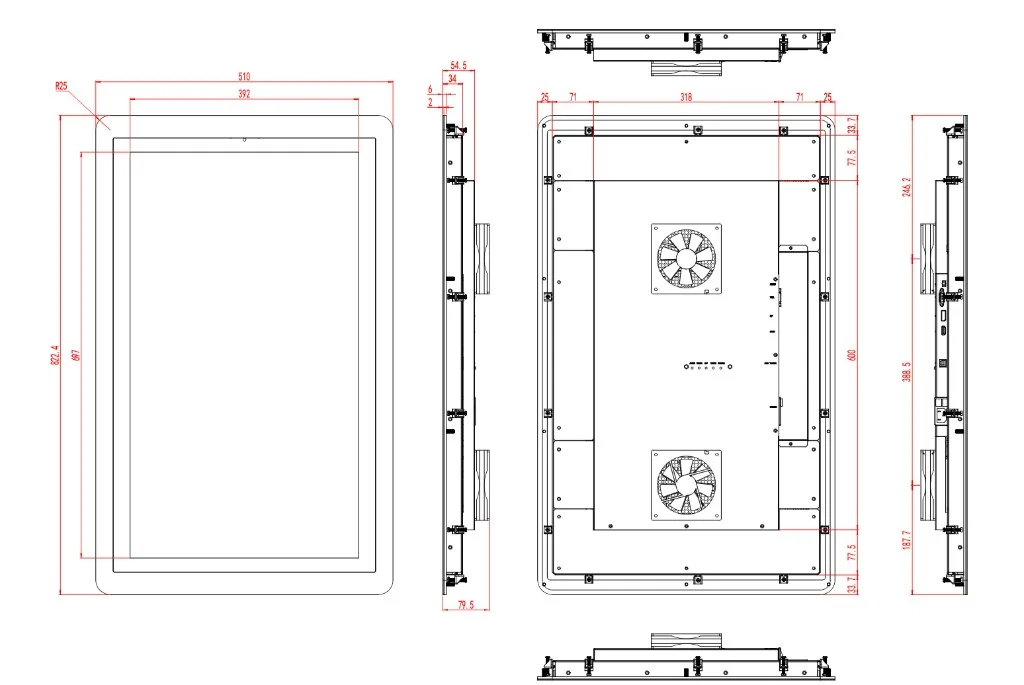

Portrait reference mechanical: 510.0 × 822.4 × 79.5 mm envelope (W × H × T), corner R25, active about 392 × 697 mm, bezel about 6 mm, dual vertical rear fan grilles. Side mounting clips; rear perimeter M4 pattern per drawing. Use the drawing for tolerances and approval.
Envelope
510.0 × 822.4 × 79.5 mm
Active + mounting
Active: 697.4 × 391.8 mm · VESA 400 × 200 · dual fans
