23.8″ Windows Panel PC

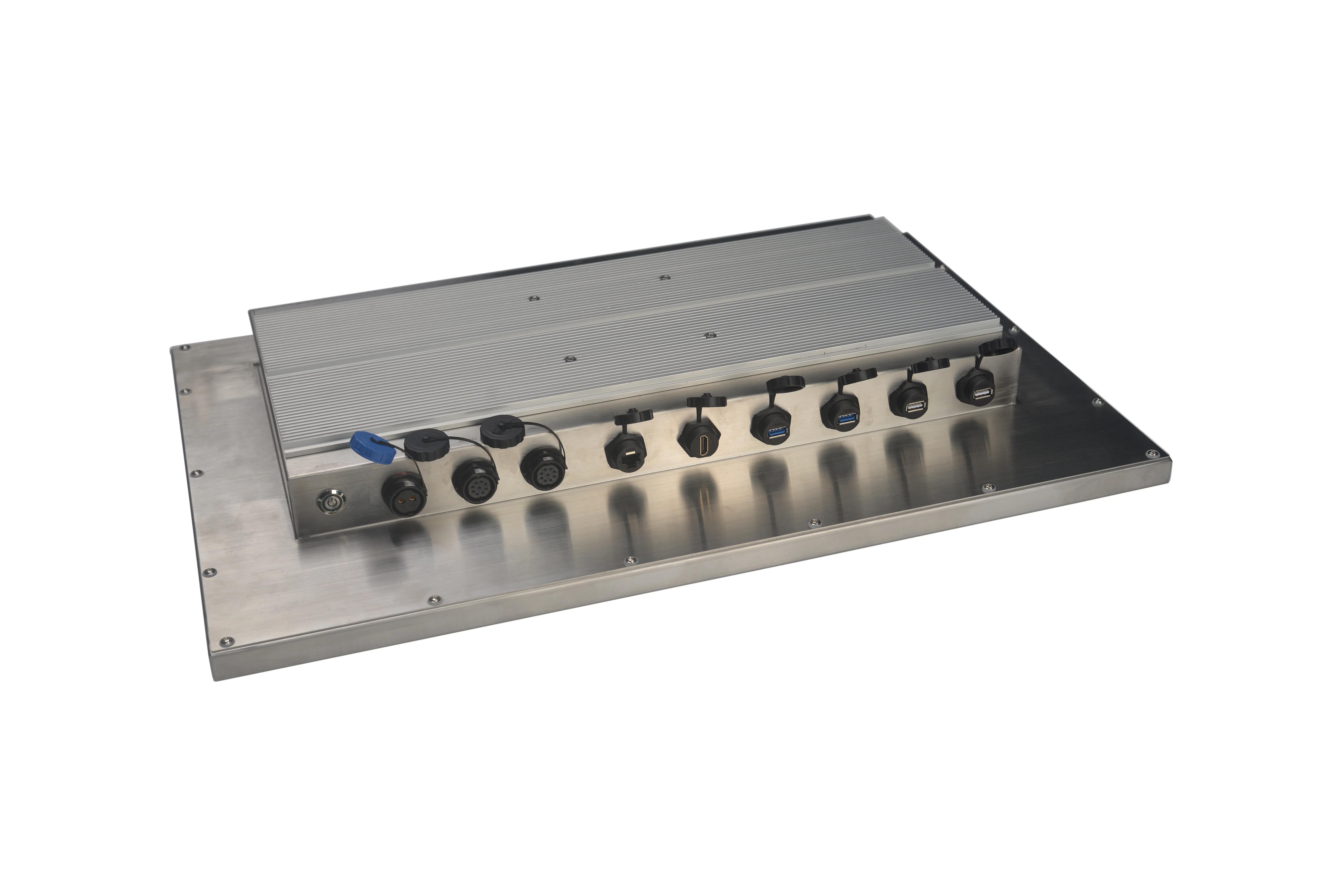

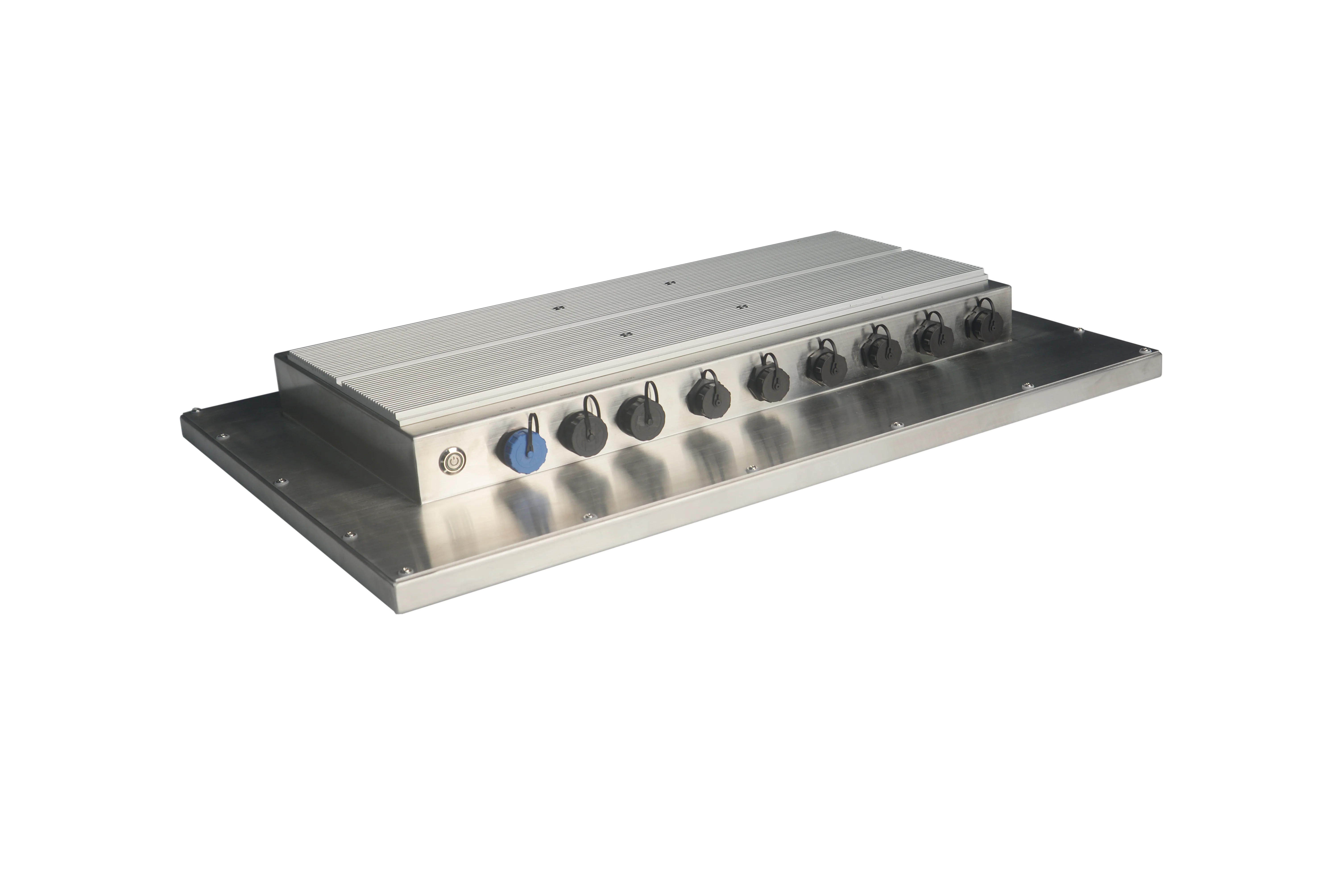

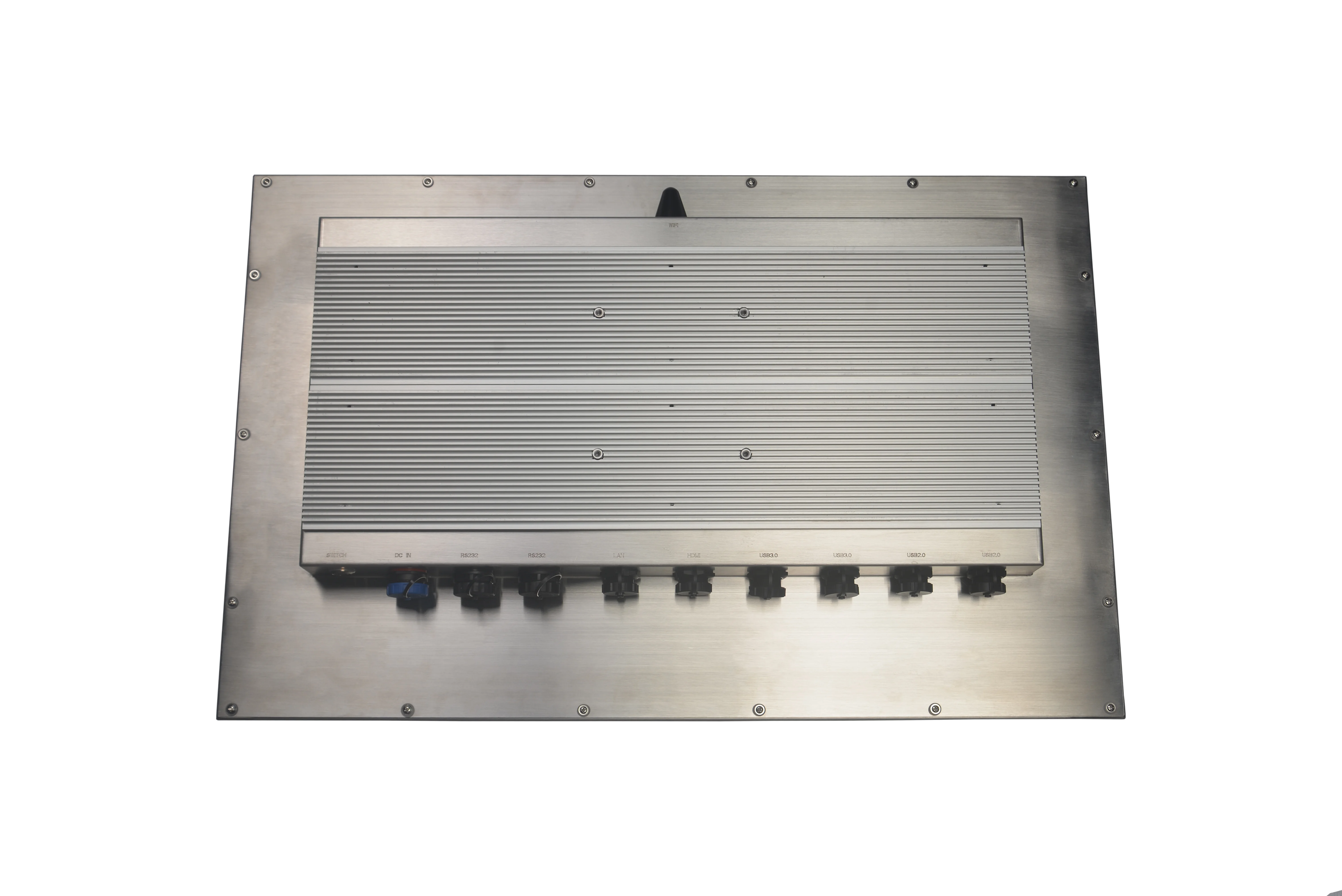

Completed IP66 reference build: 3 mm bezel PCAP all-in-one with Intel Core i5-1235U (Alder Lake 12th Gen), Windows 11 Pro, FHD 1920 × 1080, 16 GB + 512 GB standard, IP66 rated, sheet-metal housing with rear heatsink, bottom I/O (DC, HDMI, 4× USB, LAN, 2× RS232, audio), VESA 100 × 100, Wi-Fi antenna.
- 300 cd/m² panel (upgrade to 1,500 nits optional); 2-point PCAP (ILITEK), AG coating.
- Operating 0 °C ~ 50 °C; storage −20 °C ~ 60 °C.
- HDMI, 4× USB, RJ45, 2× RS232, audio; DC 24 V (≤ 65 W).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,500 nits optional
- Wide-temperature design, high reliability
- IP66 rated · sheet-metal housing · rear heatsink · anti-glare AG glass (Mohs 7)
Typical applications
- Wash-down and dusty plant floors requiring IP66 sealed fronts
- Large-format HMI with bottom-mounted industrial I/O and Wi-Fi antenna
- Panel-mount AIO with sheet-metal enclosure, rear fins, and FHD 16:9 display
- Programs needing Win11 Pro on i5-1235U with 16 GB RAM and 512 GB industrial SSD
Specifications
Values below match koretouch-sti-238ctpcw-win-rer-specifications.pdf (same edition as the downloadable file in Documents). *Additional custom specifications available on request.
LCD panel
| Screen size | 23.8″ |
|---|---|
| IP rating | IP66 |
| Active area (H × V) | 526.0 mm × 296.5 mm |
| Pixel pitch | 0.2745 mm × 0.2745 mm (92 PPI) |
| Resolution | 1920 × 1080 FHD, 16:9 |
| Color | 16.7M (75% NTSC) |
| Brightness | 300 cd/m² |
| Contrast ratio | 1000:1 (typ., TM) |
| Response time (Tr+Tf, typ.) | 14 ms (typ.) |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (typ.) |
| Backlight / lifetime | WLED / 50,000 h |
Touch panel
| Touch screen | PCAP touch (2 points), ILITEK |
|---|---|
| Touch interface | USB |
| Touch accuracy | ±2 mm |
| Tempered glass | Yes (AG coating) |
| Glass thickness | 3 mm |
PC system
| Motherboard | Industrial mainboard |
|---|---|
| CPU | Intel Core i5-1235U (Alder Lake 12th Gen) |
| GPU / audio | Intel UHD Graphics · 2× audio jack |
| Memory | DDR4 16 GB |
| Storage | Industrial SSD 512 GB |
| Network | 1000 Mbit Ethernet · Wi-Fi · Bluetooth |
| Operating system | Windows 11 Pro / Linux |
External connectors
| External connectors | 1× DC input · 1× HDMI · 4× USB · 1× RJ45 · 2× audio I/O · 2× COM RS232 · 1× Wi-Fi antenna connector |
|---|
Power
| Power supply | External power adapter |
|---|---|
| Power input | DC 24 V |
| Rated output current | 10 A |
| Output power | ≤ 65 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 623.0 × 401.0 × 74.2 mm (per dimensional drawing) |
|---|---|
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | −20°C ~ 60°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal |
| VESA / panel mounting | 100 × 100 |
| Warranty | 1 year |
Outline & drawing

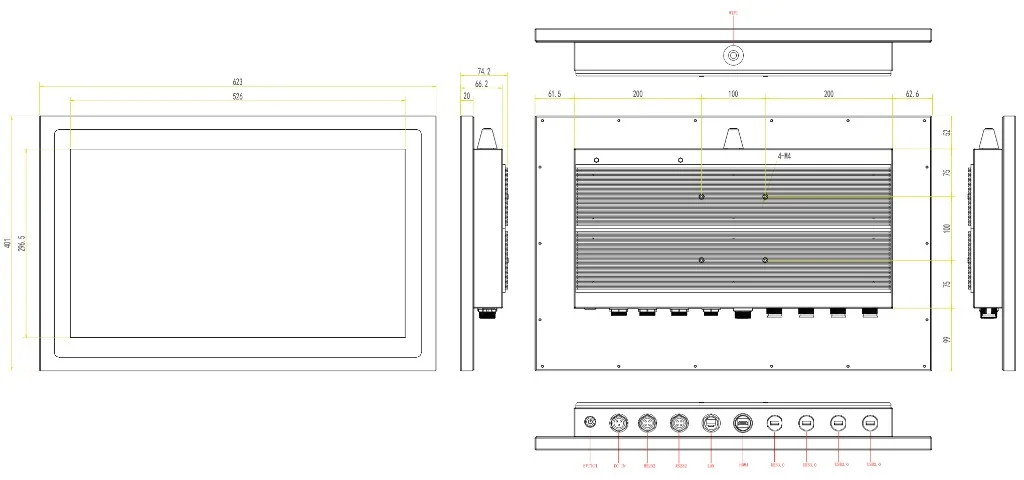

IP66 reference mechanical: 623.0 × 401.0 × 74.2 mm envelope (W × H × T), active opening 526 × 296.5 mm, front bezel about 20 mm, VESA 100 × 100 (4×M4) on rear chassis with finned heatsink. Bottom I/O: power, DC, 2×RS232, LAN, HDMI, 4×USB; top Wi-Fi antenna. Use the drawing for tolerances and approval.
Envelope
623.0 × 401.0 × 74.2 mm
Active + mounting
Active: 526.0 × 296.5 mm · VESA 100 × 100 (4×M4)
