17″ PCAP touch monitor
17″ Industrial Touch Display
Multi-touch PCAP monitor from KoreTouch’s industrial series: SXGA 1280 × 1024 (5:4) a-Si TFT-LCD, IP65 front sealing, sheet-metal housing, and VESA 100 × 100 mounting. Wet and glove capable; optical bonding and glass surface finishes available as project options.
- Industrial LCD, rated for 24/7; brightness 250 cd/m² (upgrade path to 1,500 nits).
- IP65 front; rear per enclosure design. Operating range 0 °C ~ 50 °C.
- PCAP over 2 mm cover; HDMI + VGA + DVI (DisplayPort optional). DC 12 V in (9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,500 nits optional
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Machine HMI, setpoints, and alarms in automation cells
- Test & measurement and bench equipment fronts
- Kiosk / public-facing (validate glass & sealing for your environment)
- OEM device integration with custom stack & I/O (contact sales)
Specifications
Data sourced from koretouch-kt-170hbm-i01-specifications.pdf (and internal spec table where available). *Additional custom specifications available on request.
LCD panel
| Screen size | 17″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 339.7 mm × 272.2 mm |
| Pixel pitch | 0.264 mm × 0.264 mm (96 PPI) |
| Resolution | 1280 (RGB) × 1024 SXGA, 5:4 |
| Display type | a-Si TFT-LCD |
| Contrast ratio | 1000:1 |
| Color | 16.7M, 72% NTSC (typ.) |
| Brightness | 250 cd/m² (upgrade path to 1,500 nits) |
| Backlight | WLED, 30,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 85° / 85° / 80° / 80° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 3.8 ms / 1.2 ms |
Touch screen
| Technology | Projected capacitive, multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |

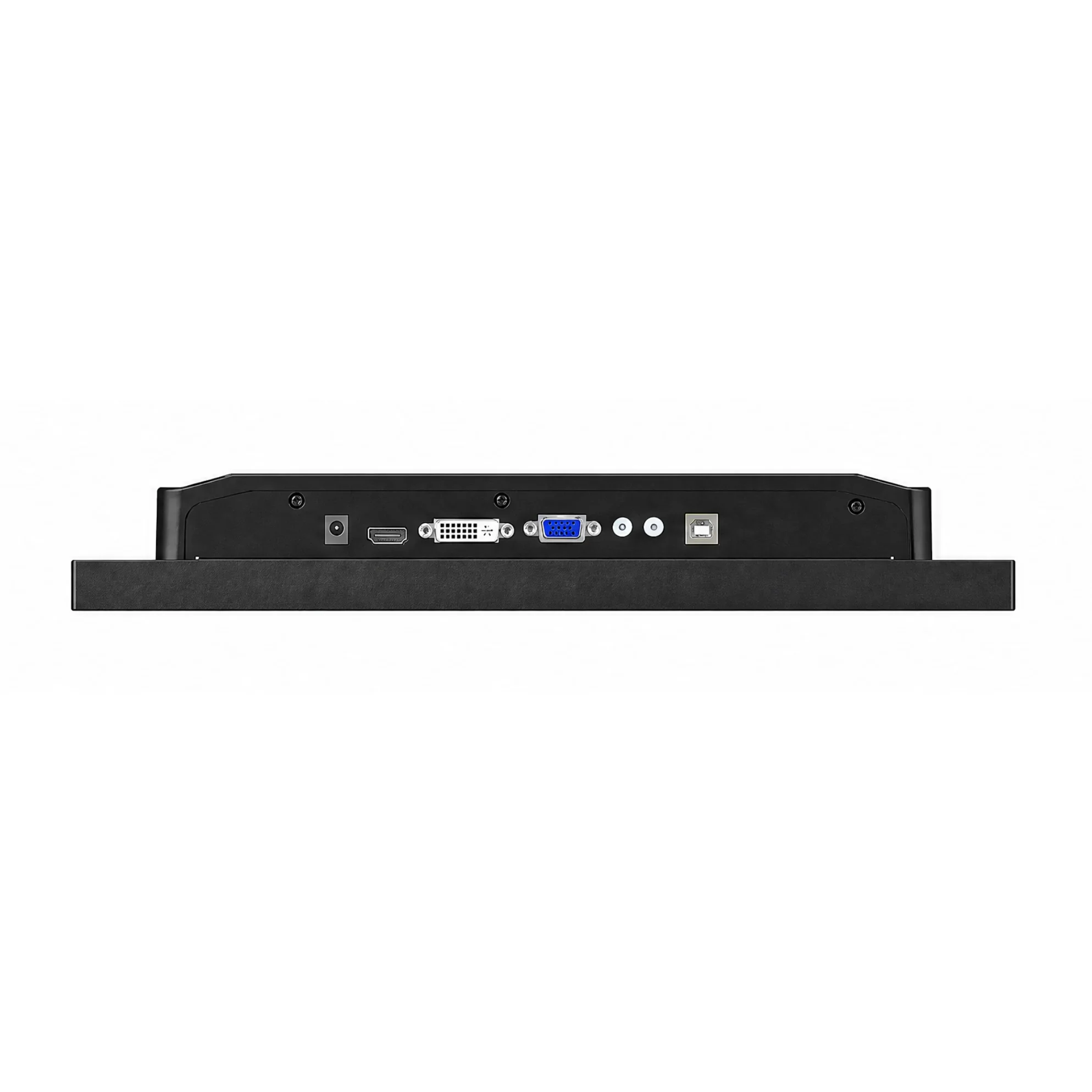

Connectors & power
| Video | HDMI + VGA + DVI (DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 18 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 369.1 × 309.9 × 53.5 mm |
|---|---|
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | −20°C ~ 60°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | 100 × 100 |
| Weight | 4.5 kg |
| Warranty | 1 year |

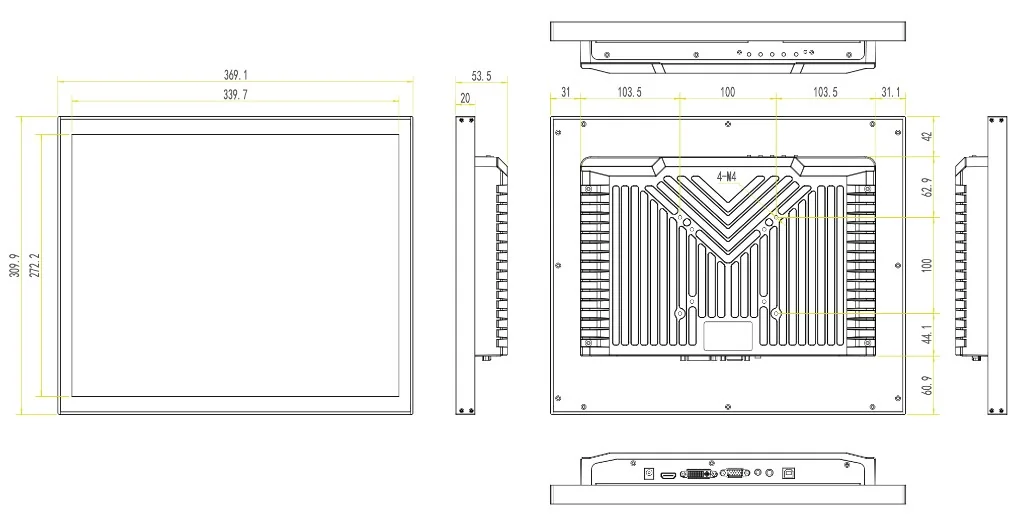

Outline & drawing
Envelope and drill pattern follow the dimensional drawing: VESA 100 × 100 with pilot holes per drawing. Use the drawing below for tolerances, cutouts, and production approval.
Envelope
369.1 × 309.9 × 53.5 mm
Active + mounting
Active: 339.7 mm × 272.2 mm · Mount: 100 × 100
