17″ high-brightness PCAP monitor with fan — reference project
17″ High-Brightness Touch Monitor
Completed reference program: 17″ portrait-format high-brightness monitor with SXGA 1280 × 1024, 1,000 cd/m² panel, IP65 front / IP40 back, integrated dual cooling fans (2×50×50×15 mm), and sheet-metal housing with customized mounting per drawing.
- Industrial LCD, rated for 24/7; brightness 1,000 cd/m²; dual fans for extended thermal headroom.
- IP65 front / IP40 back. Operating −20 °C ~ 70 °C; storage −20 °C ~ 70 °C.
- Single-touch PCAP (glove / rain); HDMI + VGA + DVI. DC 24 V (≤ 36 W).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,200 nits optional
- Wide-temperature design, high reliability
- IP65 front / IP40 back · dual rear fans · AG glass (Mohs 7)
Typical applications
- Portrait industrial HMI and signage needing 5:4 SXGA with high brightness
- Enclosed cabinets where dual rear fans improve reliability
- Glove- and rain-capable single-touch in wash-down or outdoor-adjacent areas
- Custom mounting and I/O (USB touch, audio, HDMI/VGA/DVI, DC) per mechanical
Specifications
Values below match koretouch-kt-170hbm-i01-specifications.pdf (reference project edition). *Additional custom specifications available on request.
LCD panel
| Screen size | 17″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 337.0 mm × 270.0 mm |
| Pixel pitch | 0.264 mm × 0.264 mm (96 PPI) |
| Resolution | 1280 (RGB) × 1024 SXGA, 5:4 |
| Aspect / display type | 5:4 SXGA / a-Si TFT-LCD |
| Contrast ratio | 1000:1 (typ.) |
| Color | 16.7M |
| Brightness | 1000 cd/m² |
| Backlight | 30,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 85° / 85° / 80° / 80° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 20 ms (typ.) |
Touch screen
| Technology | Capacitive single-touch (glove and rain touch) |
|---|---|
| Interface | USB |
| Surface treatment | AG coating |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |

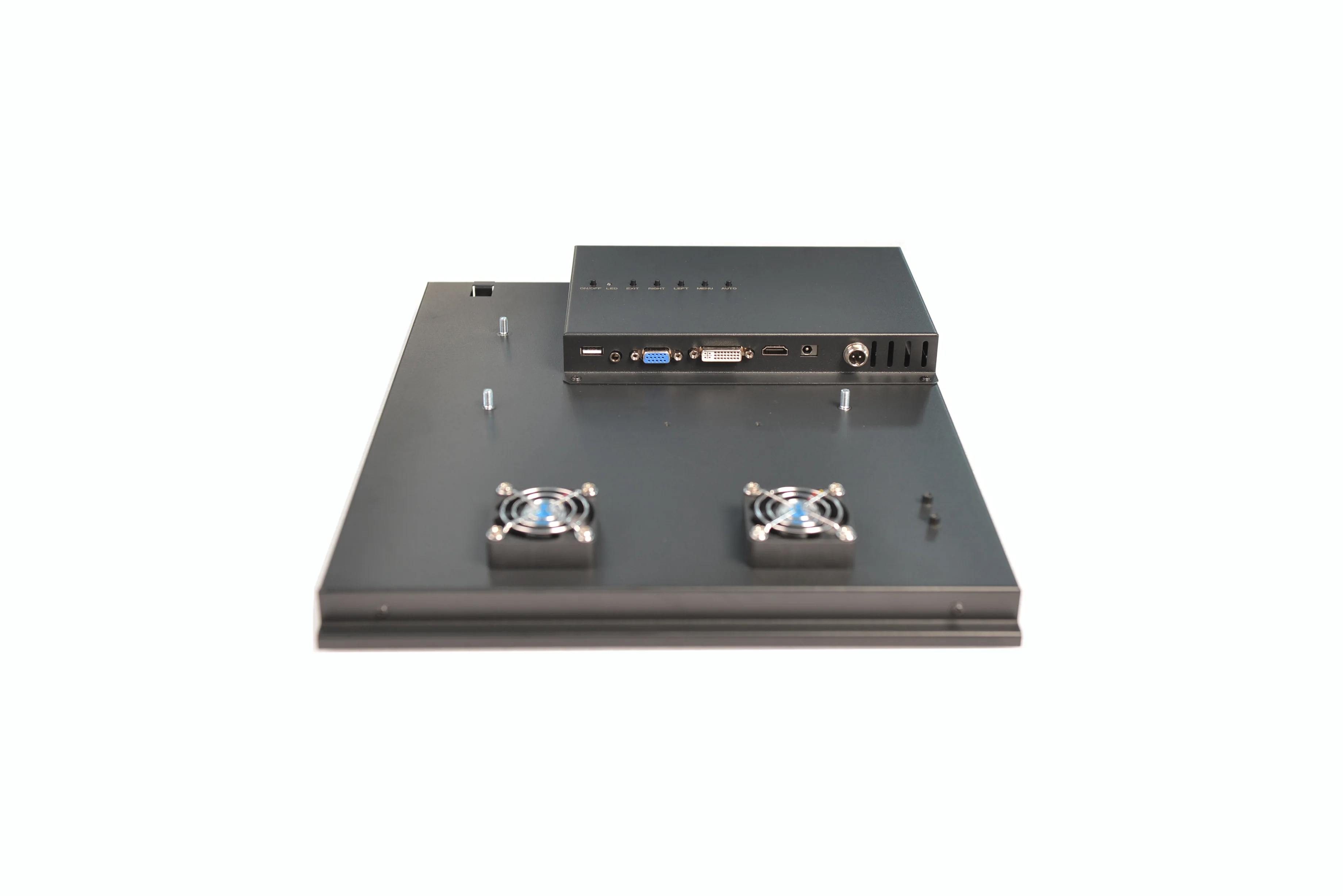

Connectors & power
| Video | HDMI + VGA + DVI |
|---|---|
| Power input | DC 24 V |
| Output power | ≤ 36 W |

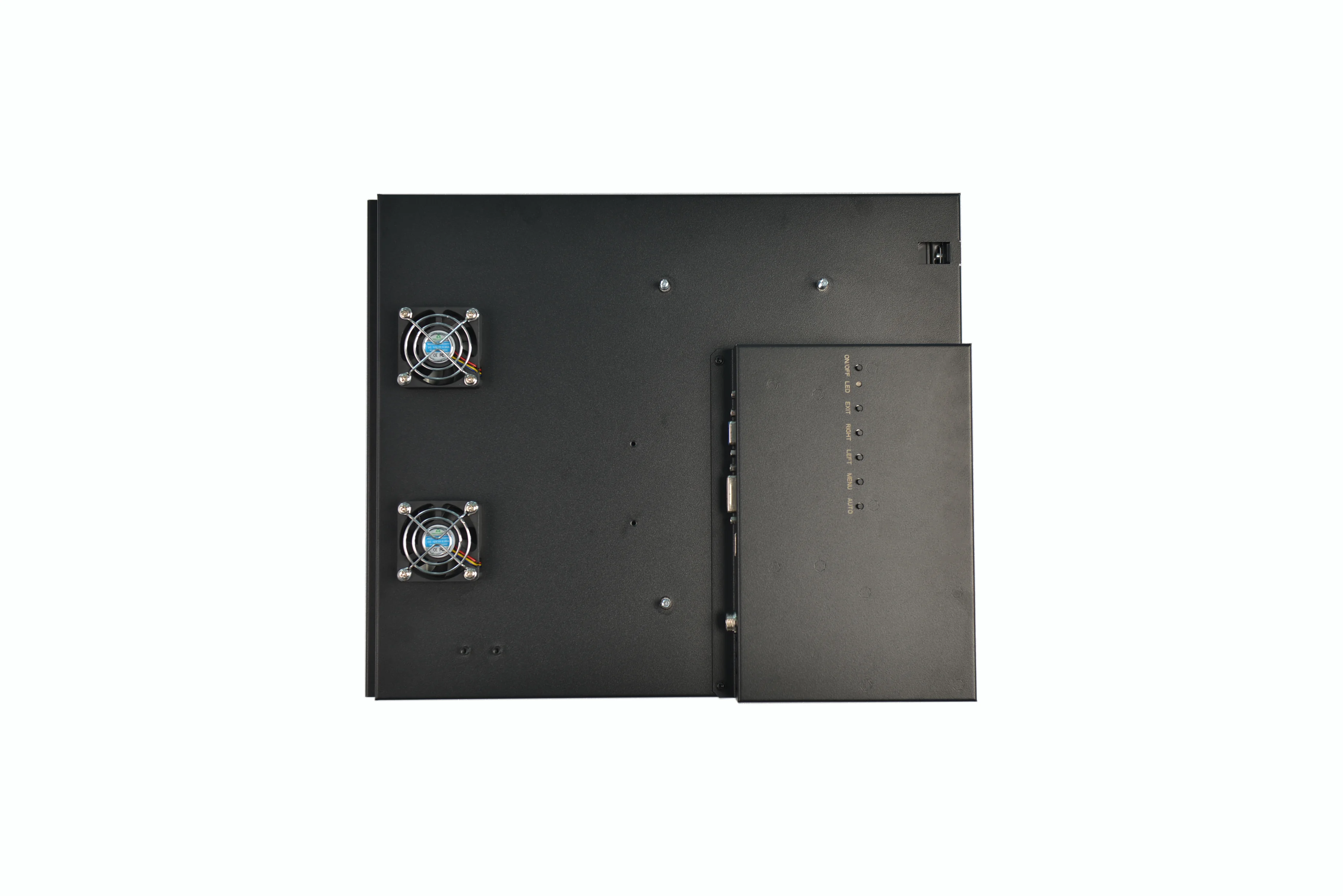

Cooling fans
| Fan (qty.) | 2× 50 × 50 × 15 mm |
|---|---|
| Rated speed | 3600 RPM ±10% |
| Max. airflow | 8.9 CFM |
| Rated current | 1.5 A (typ.) |
| Standby power | ≤ 0.5 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 318.0 × 380.3 × 53.0 mm |
|---|---|
| Operating temperature | −20°C ~ 70°C |
| Storage temperature | −20°C ~ 70°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | Customized (per drawing) |
| Weight | 5.5 kg |
| Warranty | 1 year |

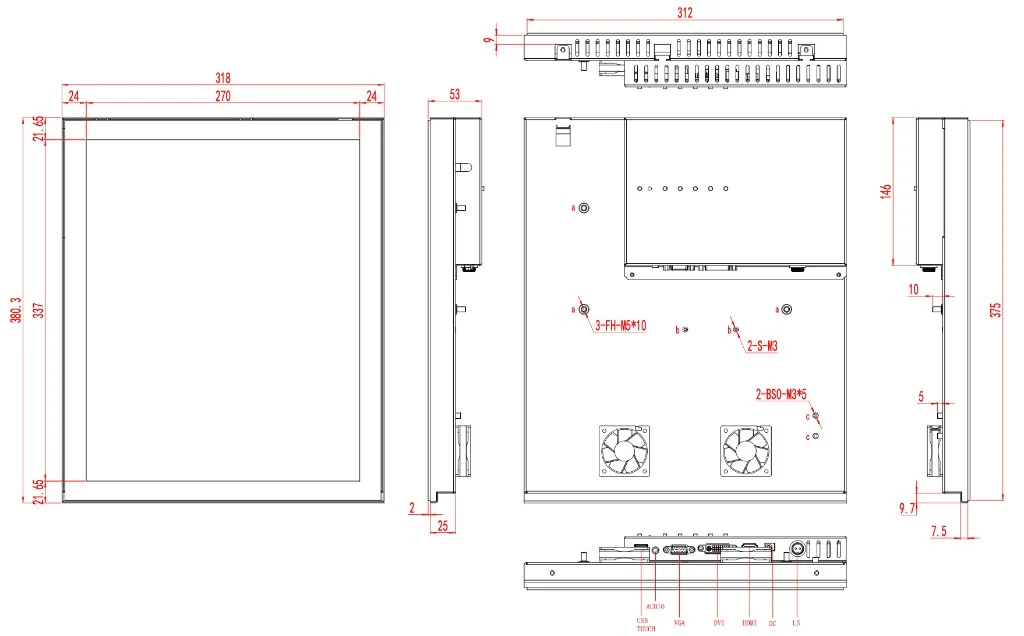

Outline & drawing
Portrait reference mechanical: 318.0 × 380.3 × 53.0 mm envelope, active 270 × 337 mm, dual rear fan grilles. Bottom I/O: USB touch, audio, VGA, DVI, HDMI, DC. Custom rear mounting (M3/M5 per drawing). Use the drawing for tolerances and approval.
Envelope
318.0 × 380.3 × 53.0 mm
Active + mounting
Active: 337.0 × 270.0 mm · dual fans · custom mount
