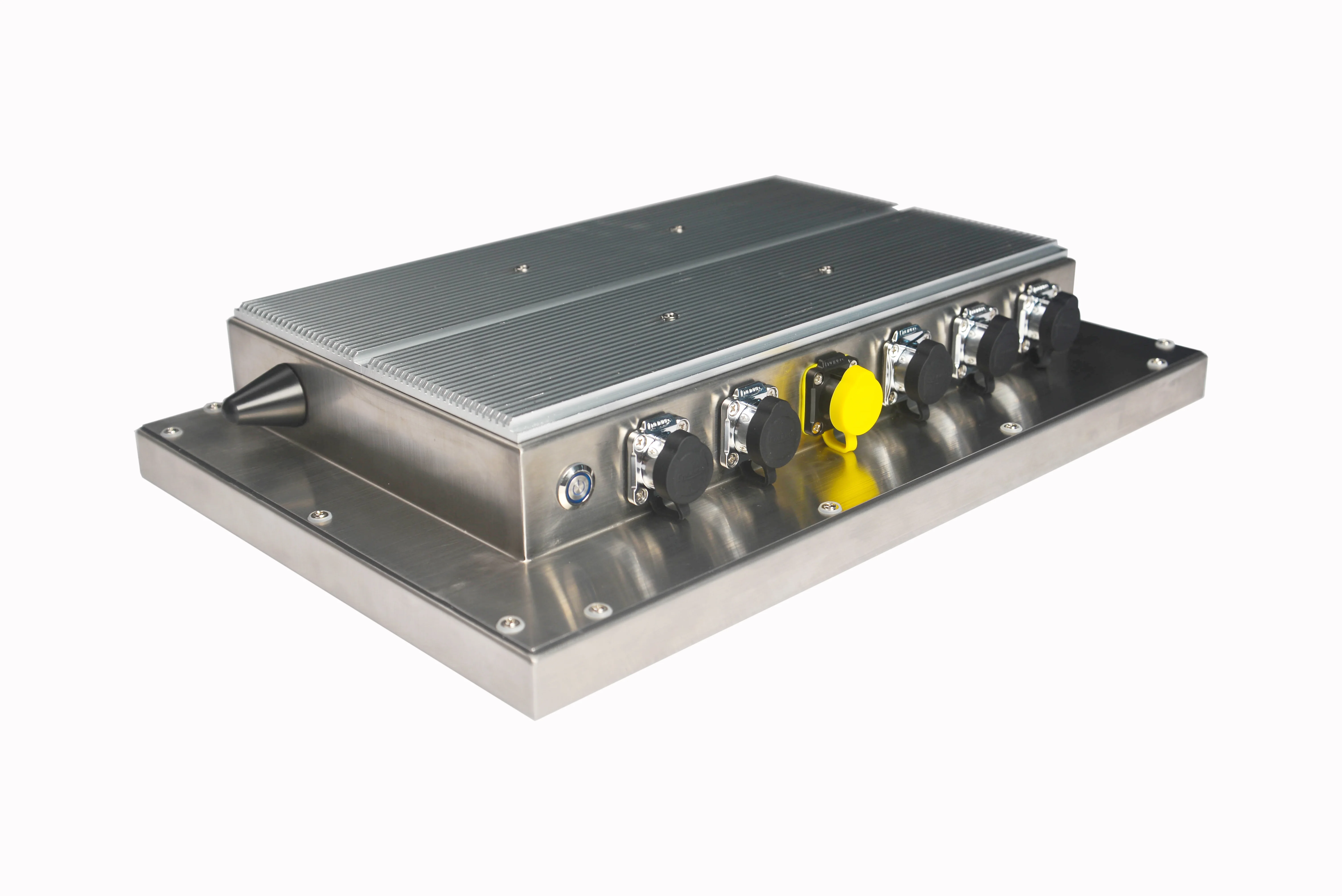

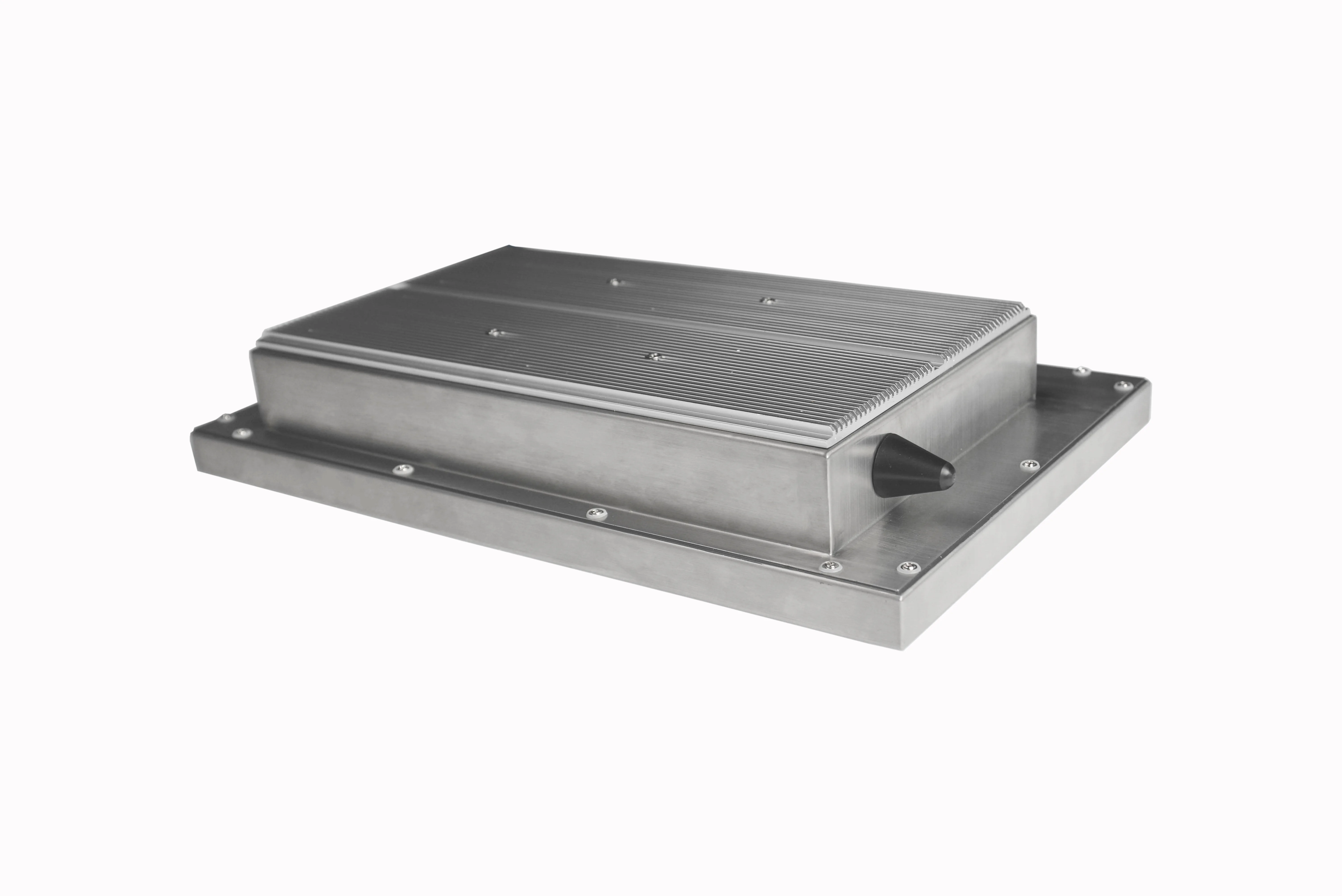

Model STI-156CTPCW-Win
KoreTouch STI-156CTPCW-Win reference project — 15.6-inch IP65 Windows panel PC, Intel J1900, FHD 1920×1080, stainless steel housing, VESA 100×100, DC 12V.
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,500 nits optional
- Wide-temperature design, high reliability
- IP65 rated · stainless steel housing · anti-glare AG glass (chemical etching)
Typical applications
- Wash-down and dusty plant floors requiring IP65 sealed fronts
- Machine control with circular M12-style field connectors
- Panel-mount HMI with stainless enclosure and FHD 16:9 display
- Programs needing Win10/Linux on J1900 with 128 GB industrial SSD
Specifications
Values below match koretouch-sti-156ctpcw-win-v2-specifications.pdf (same edition as the downloadable file in Documents). *Additional custom specifications available on request.
LCD panel
| Screen size | 15.6″ |
|---|---|
| IP rating | IP65 |
| Active area (H × V) | 344.2 mm × 193.6 mm |
| Pixel pitch | 0.17925 mm × 0.17925 mm (141 PPI) |
| Resolution | 1920 × 1080 FHD, 16:9 |
| Color | 16.7M |
| Brightness | 450 cd/m² |
| Contrast ratio | 1000:1 (typ., TM) |
| Response time (Tr+Tf, typ.) | 18 ms (typ.) |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (typ.) |
| Backlight / lifetime | WLED / 50,000 h |
Touch panel
| Touch screen | PCAP multi-touch (10 points), EETI |
|---|---|
| Touch interface | USB |
| Touch accuracy | ±2 mm |
| Tempered glass | Yes (AG coating) |
| Glass thickness | 3 mm |
PC system
| Motherboard | Industrial mainboard |
|---|---|
| CPU | Intel Celeron Quad-Core J1900 |
| GPU / audio | Integrated graphics / integrated audio |
| Memory | DDR3L 4 GB (SO-DIMM) |
| Storage | Industrial SSD 128 GB |
| Network | 1000 Mbit Ethernet, Wi-Fi |
| Operating system | Windows 10 / Linux (pre-installed Linux per datasheet) |

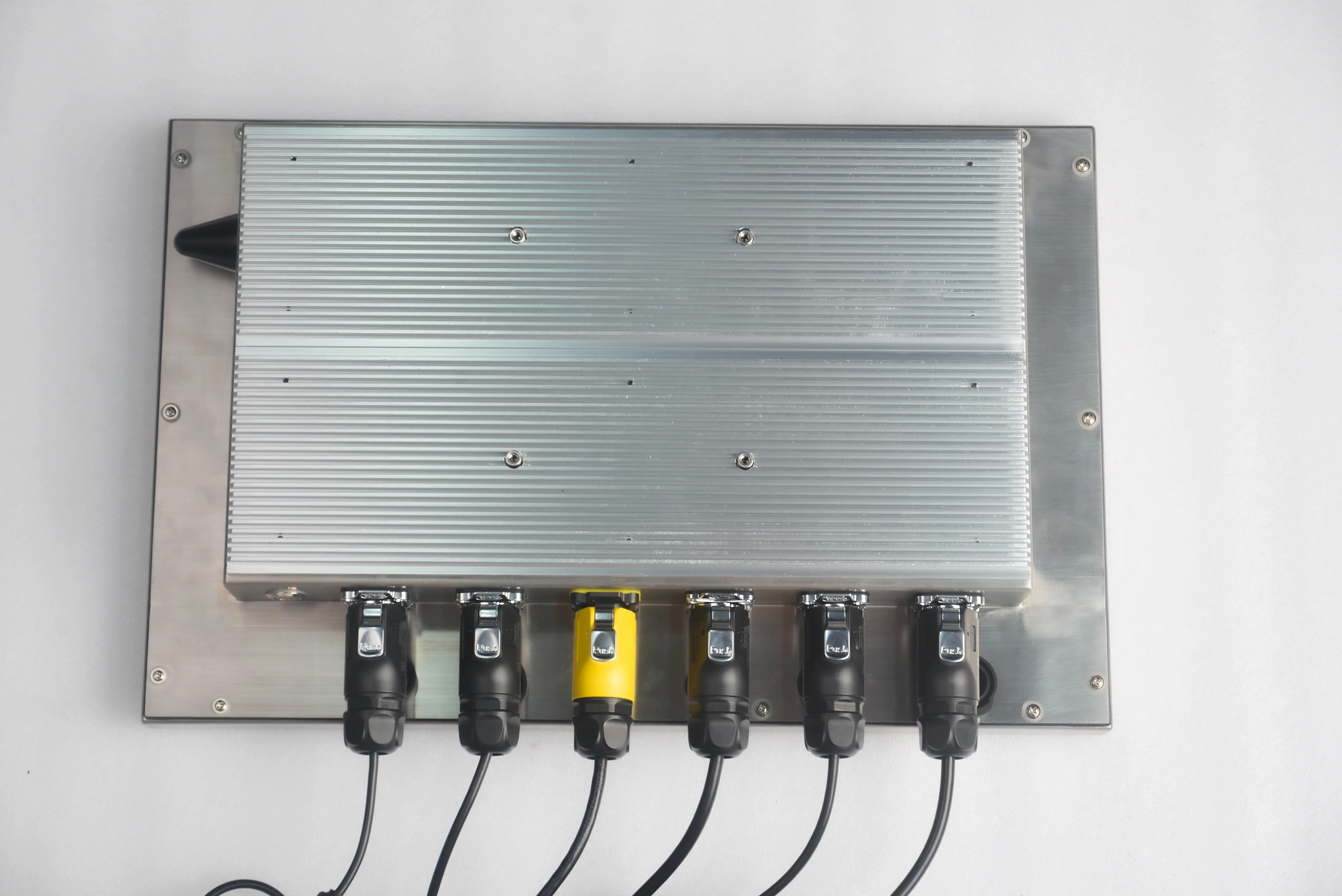

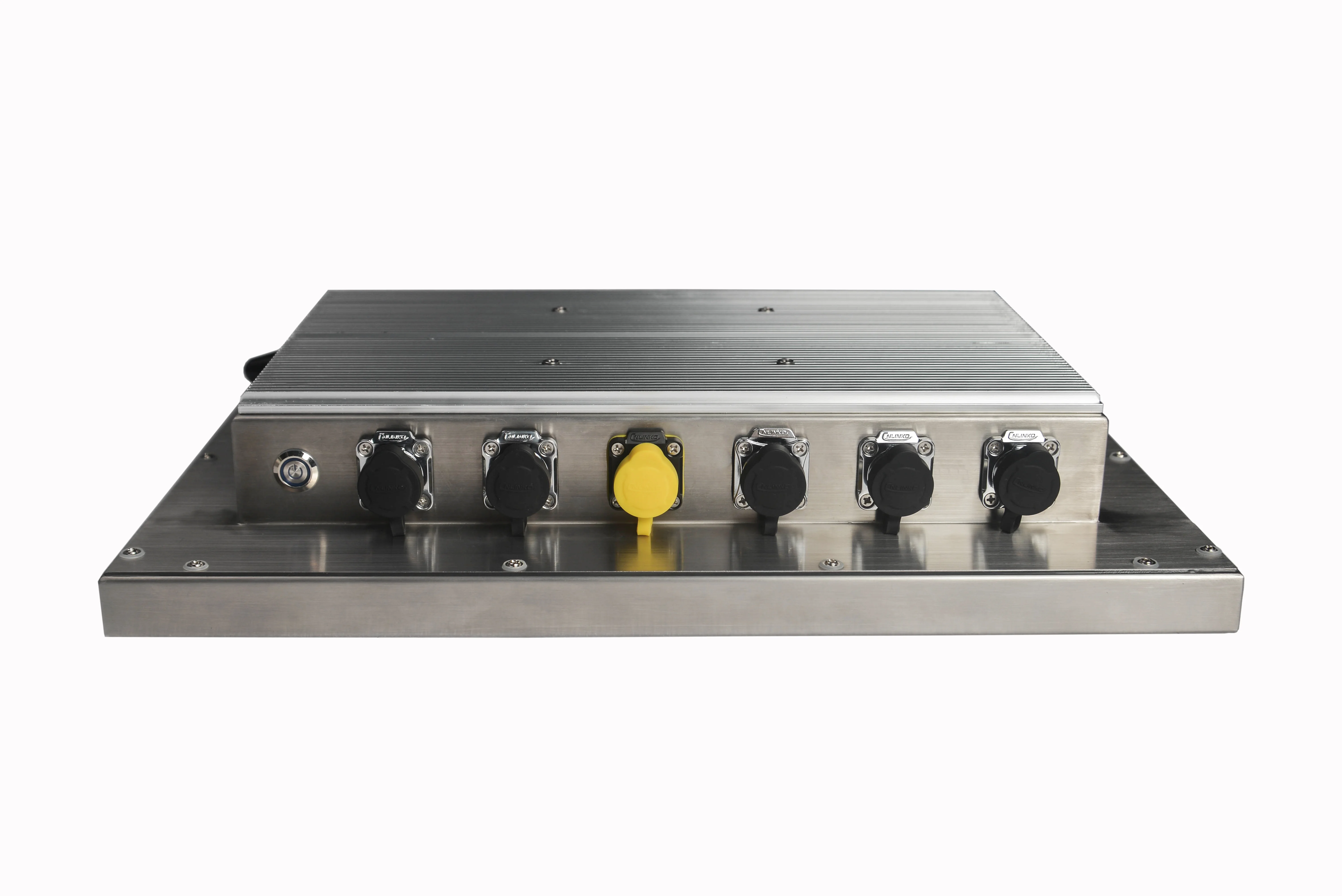

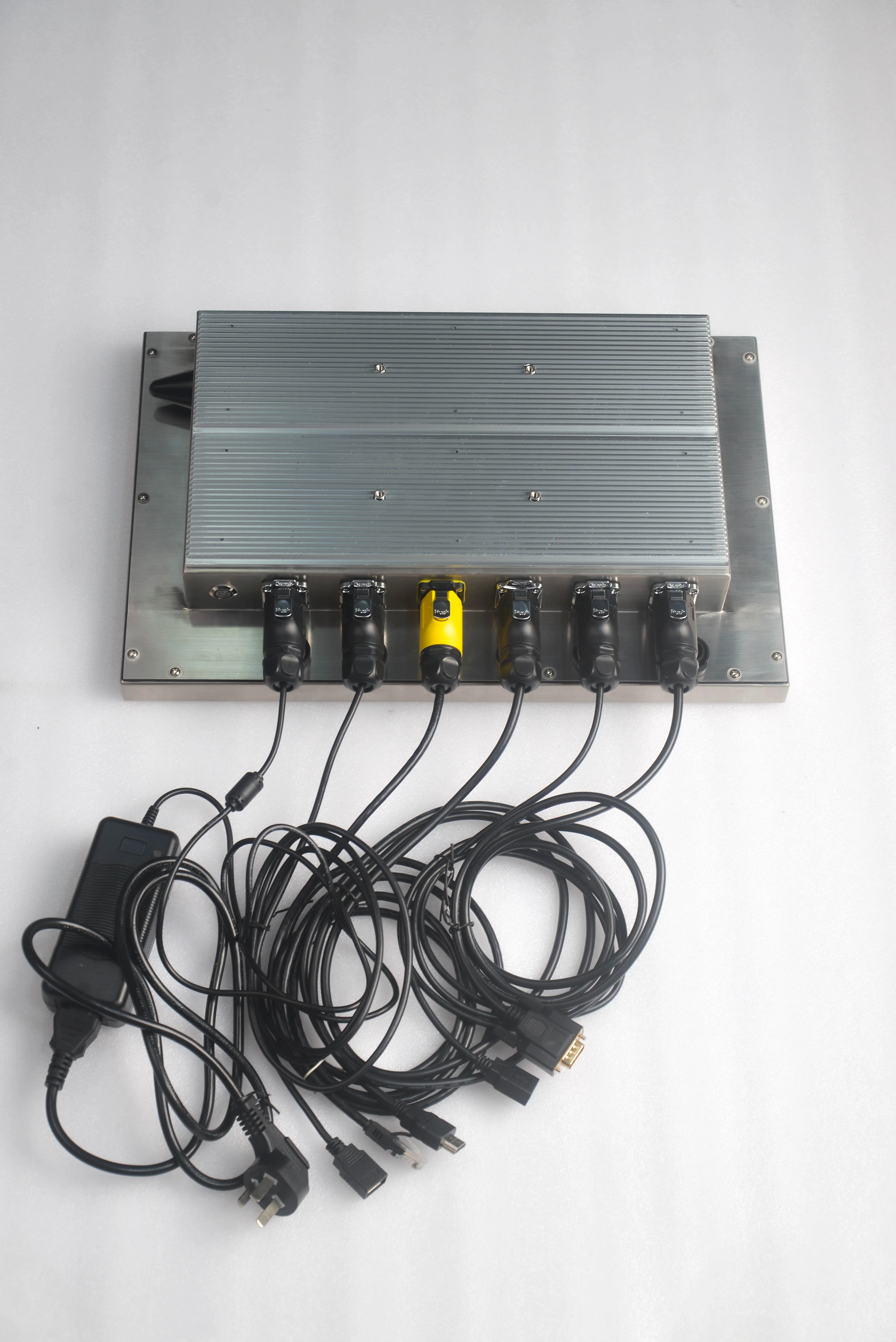

External connectors
| External connectors | 1× DC input · 1× HDMI · 2× USB · 1× RJ45 · 1× COM RS232 (circular industrial) |
|---|
Power
| Power supply | External power adapter |
|---|---|
| Power input | DC 12 V |
| Rated output current | 8 A |
| Output power | ≤ 60 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 391.3 × 246.6 × 70 mm |
|---|---|
| Operating temperature | −20°C ~ 70°C |
| Storage temperature | −30°C ~ 80°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Stainless steel |
| VESA / panel mounting | 100 × 100 |
| Warranty | 1 year |
Outline & drawing

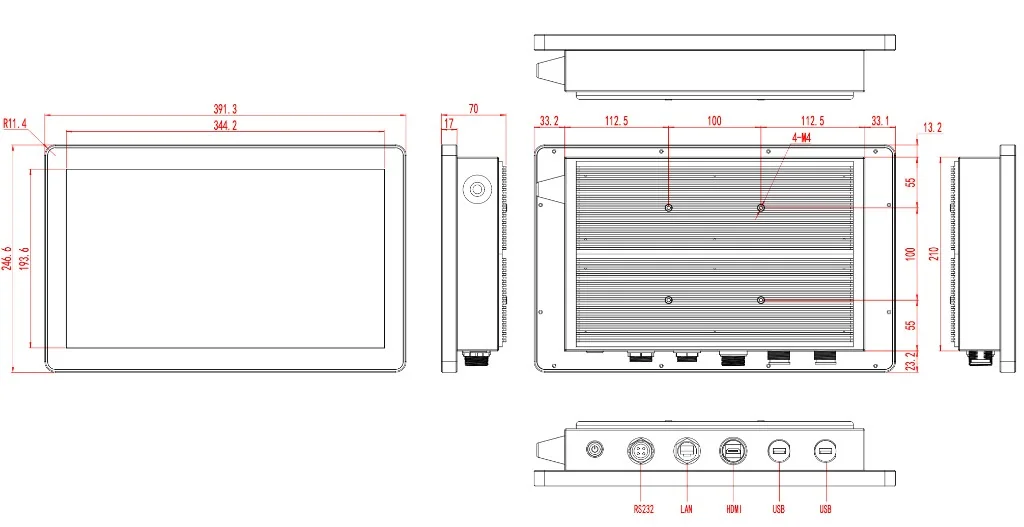

IP65 reference mechanical: 391.3 × 246.6 × 70 mm envelope, corner R11.4, VESA 100 × 100 (4×M4). Bottom: circular power, RS232, LAN, HDMI, 2×USB. Use the drawing for tolerances and approval.
Envelope
391.3 × 246.6 × 70 mm
Active + mounting
Active: 344.2 × 193.6 mm · VESA 100 × 100 (4×M4)
Custom I/O, glass, or IP targets?
Our team develops integration concepts directly from your project requirements without the need for initial technical drawings. Share your goals for I/O, glass, IP, and certification. We translate these parameters into optimized optical stack-ups, ensuring every bonding and sealing detail is refined for reliable field deployment.
