15.3″ bar type PCAP display
15.3″ Bar Type LCD Display
Ultra-wide bar-format PCAP monitor from KoreTouch: 1280 × 370 a-Si TFT-LCD, IP65 rated enclosure, sheet-metal housing with profiles, and VESA 200 × 75 mounting. Wet and glove capable; optical bonding and AG / AR / AF glass available as project options.
- Industrial LCD, rated for 24/7; brightness 500 cd/m² (upgrade path to 1,500 nits).
- IP65 rated. Operating 0 °C ~ 50 °C; storage −20 °C ~ 65 °C.
- PCAP over 3 mm tempered glass; HDMI (VGA / DVI / DP optional). DC 12 V (≤ 36 W; 9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,500 nits optional
- Wide-temperature design, high reliability
- IP65 rated enclosure — align sealing and cable routing with your install
Typical applications
- Retail shelf-edge, grab-and-go lanes, and narrow fascia signage
- Public transportation information strips and wayfinding
- Digital menu boards, hospitality, and ultra-wide messaging bands
- Custom aspect ratios, bonding, and input options (contact sales)
Specifications
Values below match koretouch-kt-153hbm-i01-specifications.pdf (same edition as the downloadable file in Documents). *Additional custom specifications available on request.
LCD panel
| Screen size | 15.3″ |
|---|---|
| IP rating | IP65 |
| Active area (H × V) | 374.8 mm × 100.1 mm |
| Pixel pitch (approx.) | 0.293 mm × 0.270 mm |
| Resolution | 1280 × 370, 16:9 ultra-wide |
| Display type | a-Si TFT-LCD |
| Contrast ratio | 1000:1 (typ.) |
| Color | 16.7M |
| Brightness | 500 cd/m² |
| Backlight | LED / 30,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 18 ms (typ.) |
Touch screen
| Technology | Capacitive multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 3 mm |

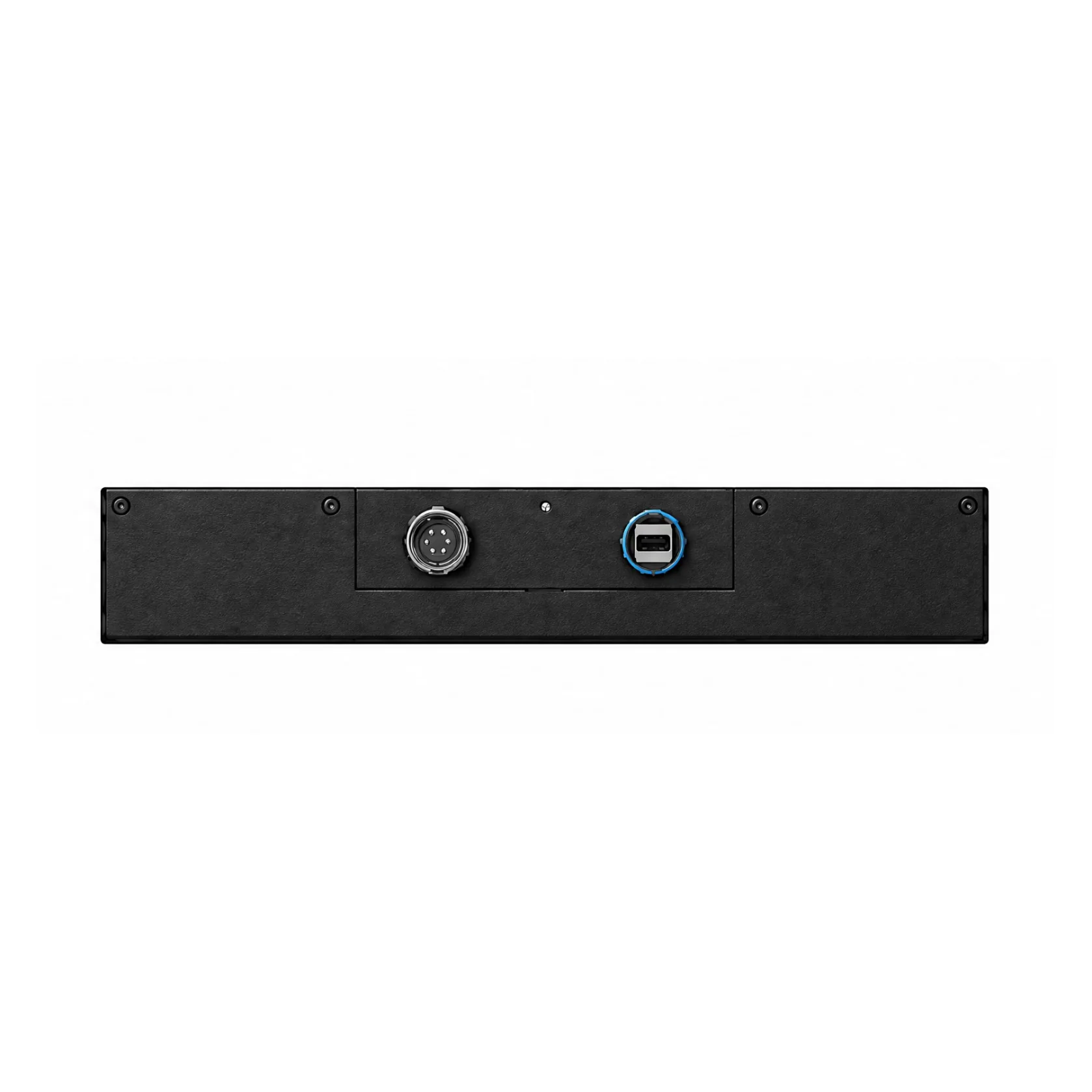

Connectors & power
| Video | HDMI (VGA / DVI / DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 36 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 418.0 × 146.8 × 60 mm |
|---|---|
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | −20°C ~ 65°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | 200 × 75 |
| Weight | 5 kg |
| Warranty | 1 year |
Outline & drawing

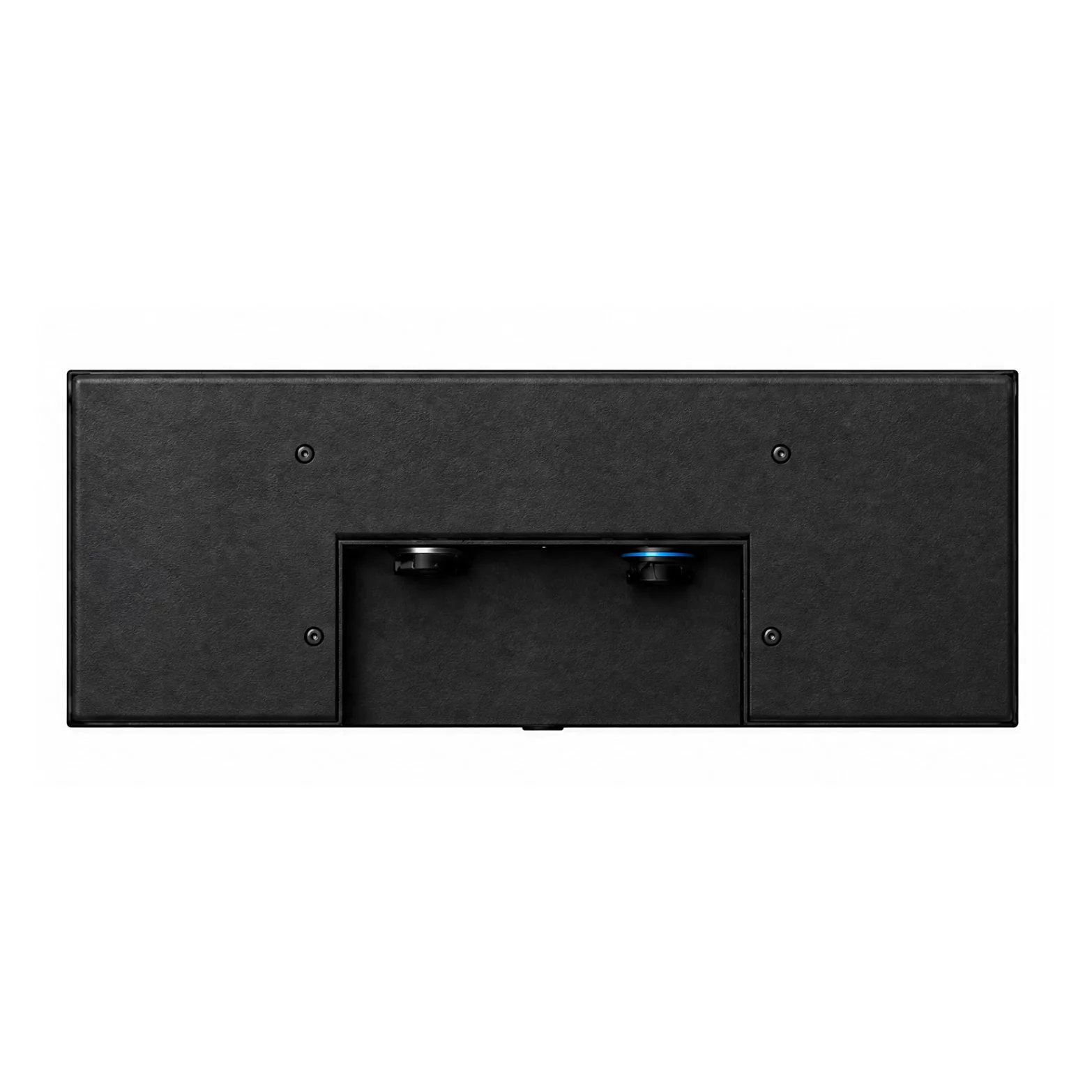

Envelope and drill pattern follow the dimensional drawing: VESA 200 × 75 with 4× M4 pilot holes per drawing. Overall depth 60 mm. Use the drawing below for tolerances, cutouts, and production approval.
Envelope
418.0 × 146.8 × 60 mm
Active + mounting
Active: 374.8 × 100.1 mm · VESA 200 × 75 (4×M4)
