12.1″ PCAP touch monitor
12.1″ Industrial Touch Display
Multi-touch PCAP monitor from KoreTouch’s industrial series: XGA 1024 × 768 (4:3) a-Si TFT-LCD, IP65 front sealing, sheet-metal housing, and VESA 75 × 75 mounting. Wet and glove capable; optical bonding and glass surface finishes available as project options.
- Industrial LCD, rated for 24/7; brightness 500 cd/m² (upgrade path to 1,200 nits).
- IP65 front; rear per enclosure design. Operating range −30 °C ~ 70 °C.
- PCAP over 2 mm cover; HDMI + VGA + DVI (DisplayPort optional). DC 12 V in (9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,200 nits optional
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Machine HMI, setpoints, and alarms in automation cells
- Test & measurement and bench equipment fronts
- Kiosk / public-facing (validate glass & sealing for your environment)
- OEM device integration with custom stack & I/O (contact sales)
Specifications
Data sourced from koretouch-kt-121hbm-i01-specifications.pdf (and internal spec table). *Additional custom specifications available on request.
LCD panel
| Screen size | 12.1″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 248 mm × 186.8 mm |
| Pixel pitch | 0.204 mm × 0.204 mm (124 PPI) |
| Resolution | 1024 (RGB) × 768 XGA, 4:3 |
| Display type | a-Si TFT-LCD |
| Contrast ratio | 1000:1 |
| Color | 262K / 16.7M, 72% NTSC (typ.) |
| Brightness | 500 cd/m² (upgrade path to 1,200 nits) |
| Backlight | WLED, 30,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 13 ms / 12 ms |
Touch screen
| Technology | Projected capacitive, multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG (AR / AF optional) |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |
Connectors & power
| Video | HDMI + VGA + DVI (DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Output power | ≤ 17 W |
Operation & mechanical
| Overall dimensions (W × H × T) | 290.1 × 226.9 × 42.8 mm |
|---|---|
| Operating temperature | −30°C ~ 70°C |
| Storage temperature | −40°C ~ 80°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | 75 × 75 |
| Weight | 2.5 kg |
| Warranty | 1 year |
Outline & drawing

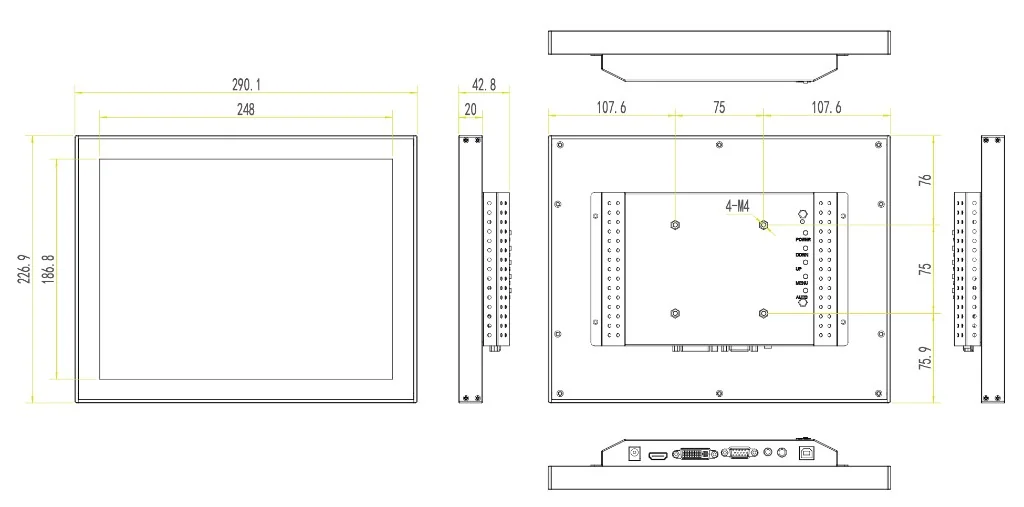

Envelope and drill pattern follow the dimensional drawing: VESA 75 × 75 with pilot holes per drawing. Use the drawing below for tolerances, cutouts, and production approval.
Envelope
290.1 × 226.9 × 42.8 mm
Active + mounting
Active: 248 × 186.8 mm · VESA 75 × 75
