10.1″ PCAP touch monitor
10.1″ Industrial Touch Display
Multi-touch PCAP monitor from KoreTouch’s industrial series: WXGA 1280 × 800 (16:10) a-Si TFT-LCD, IP65 front sealing, sheet-metal housing, and VESA 75 × 75 mounting. Supports wet and glove touch; optical bonding and surface treatments available per project.
- Industrial LCD, rated for 24/7; brightness 500 cd/m² (upgrade path to 1,200 nits).
- IP65 front; rear per enclosure design. Operating range −20 °C ~ 70 °C.
- PCAP over 2 mm cover; HDMI + VGA + DVI signals (DisplayPort optional). DC 12 V in (9–36 V optional).
Highlights
- Industrial-grade LCD, continuous 24/7 operation
- Durable mechanical design for harsh environments
- PCAP: wet touch & glove touch
- Optical bonding (Wacker AB adhesive) — custom option
- AR / AF / AG surface treatment; Mohs 7; brightness up to 1,200 nits optional
- Wide-temperature design, high reliability
- IP65 front (IP40 back per datasheet feature list) — align sealing with your install
Typical applications
- Machine HMI, setpoints, and alarms in automation cells
- Test & measurement and bench equipment fronts
- Kiosk / public-facing (validate glass & sealing for your environment)
- OEM device integration with custom stack & I/O (contact sales)
Specifications
Data sourced from koretouch-kt-101hbm-i01-specifications.pdf. *Additional custom specifications available on request.
LCD panel
| Screen size | 10.1″ |
|---|---|
| IP rating | IP65 (front) |
| Active area (H × V) | 218.5 mm × 136.5 mm |
| Pixel pitch | 0.1695 mm × 0.1695 mm (149 PPI) |
| Resolution | 1280 (RGB) × 800 WXGA |
| Aspect / display type | 16:10 / a-Si TFT-LCD |
| Contrast ratio | 800:1 |
| Color | 262K / 16.7M (typ.), 50% NTSC |
| Brightness | 500 cd/m² (upgrade path to 1,200 nits) |
| Backlight | LED, 50,000 h (typ.) |
| Viewing angles (CR=10, typ.) | 85° / 85° / 85° / 85° (L/R/U/D) |
| Response time (Tr+Td, typ.) | 10 ms / 15 ms |
Touch screen
| Technology | Projected capacitive, multi-touch |
|---|---|
| Interface | USB |
| Surface treatment | AG / AR / AF optional |
| Optical bonding | Yes (Wacker AB adhesive) |
| Cover glass thickness | 2 mm |
Connectors & power
| Video | HDMI + VGA + DVI (DisplayPort optional) |
|---|---|
| Power input | DC 12 V (9–36 V optional) |
| Power consumption | ≤ 12.5 W |
Operation & mechanical
| Overall dimensions (per datasheet) | 248.7 × 170.7 × 42.8 mm |
|---|---|
| Operating temperature | −20°C ~ 70°C |
| Storage temperature | −30°C ~ 80°C |
| Relative humidity | 10% ~ 90% RH (non-condensing) |
| Housing | Sheet metal + profiles |
| VESA mount | 75 × 75 |
| Weight | 2 kg |
| Warranty | 1 year |
Outline & drawing

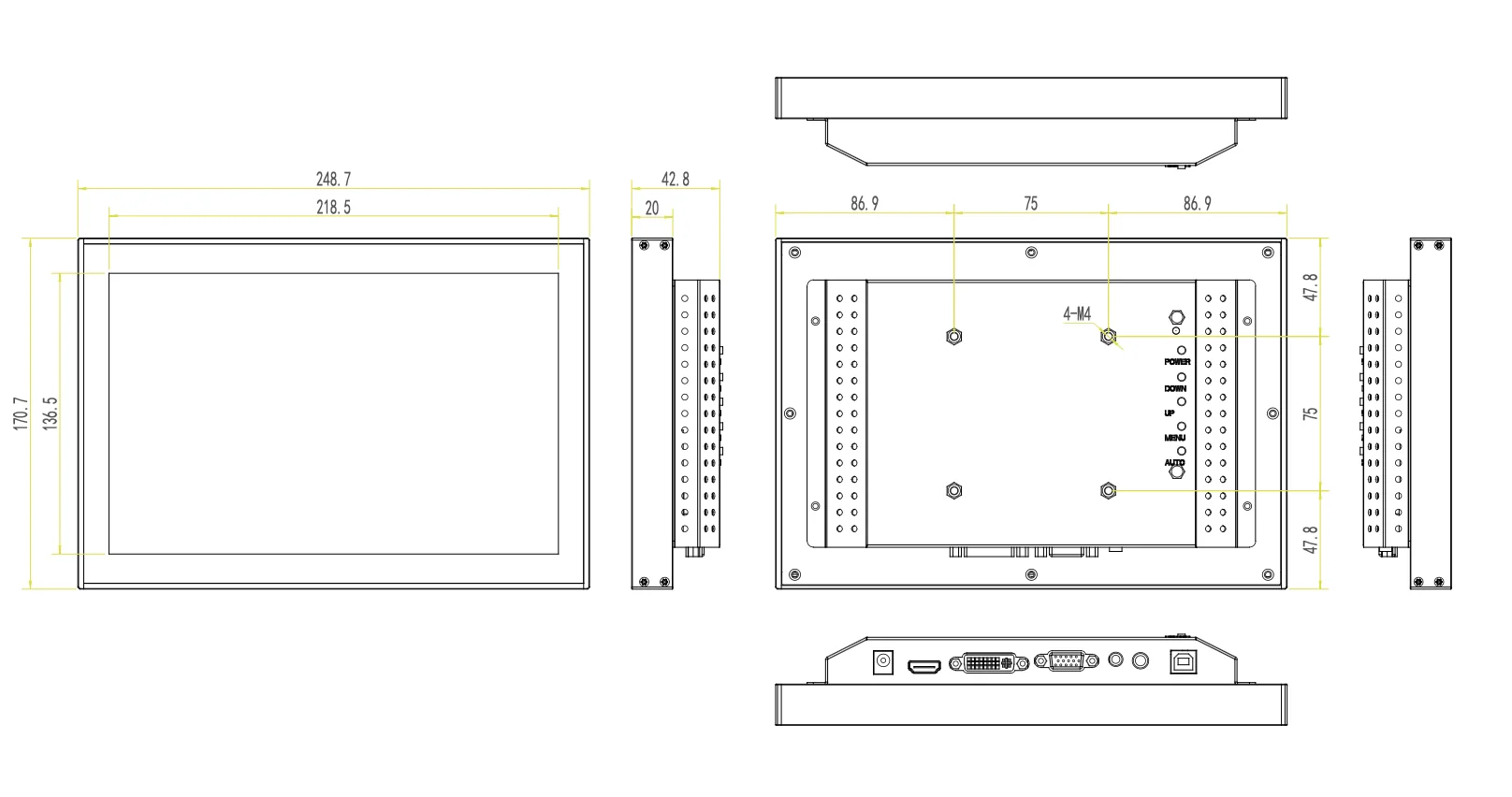

Dimensions and drilling follow the datasheet drawing on page 3: envelope 248.7 × 170.7 × 42.8 mm, VESA 75 × 75; confirm hole callouts and tolerance on the downloadable PDF preview before tooling.
Envelope
248.7 × 170.7 × 42.8 mm
Active + mounting
Active: 218.5 × 136.5 mm · VESA 75 × 75
